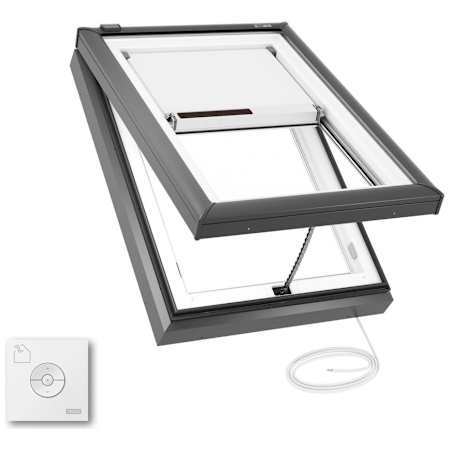

Velux VCM Manual Venting Curb Mount Skylight with Laminated LowE3 Glass and Solar Room Darkening Shade - (Outside Curb: 25.5 x 37.5 in)
Model: VCM 2234 2004S|Item: bci5170667
Details
Velux venting Skylight Systems bring fresh air into your home, improving air circulation, ventilation, and air quality. These skylights transform and visually expand a room using natural light from above, and the integrated solar powered shade gives you effortless control over that light. The shade also helps block the sun’s heat during the summer and retain your home’s heat in the winter, which improves your skylight's energy efficiency up to 40%. Curb mount skylights can be installed on a flat or sloped roof and are perfect for replacing existing curb mount skylights, including old plastic bubble skylights.
Features:
- Laminated skylight for durability and dependability

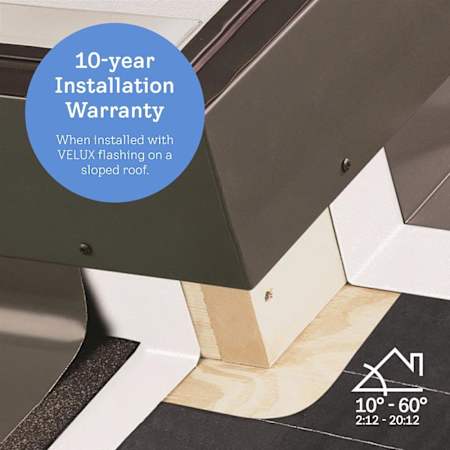

- Curb mounted installation

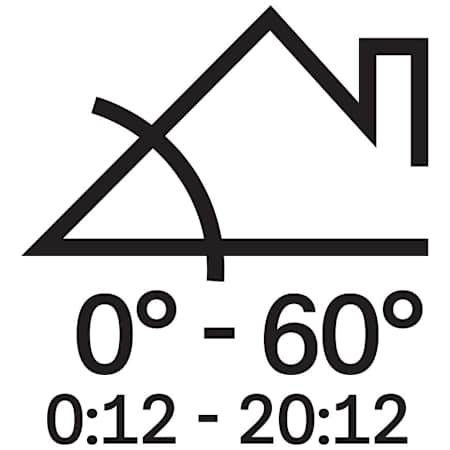

- Can be installed on a flat roof at 0° up to a 60° pitch

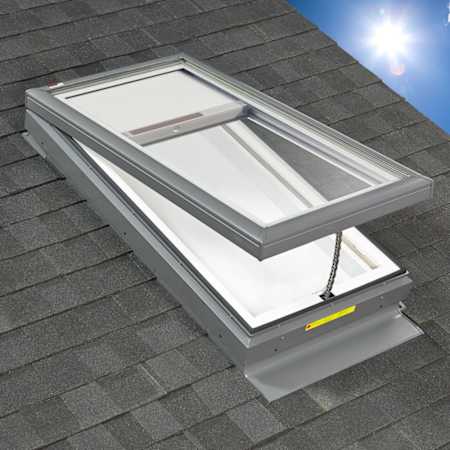

- Vented skylight can open up to bring in fresh air and light, as well as allowing excess moisture to escape

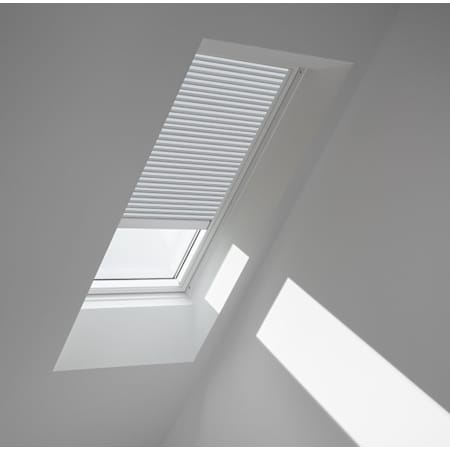

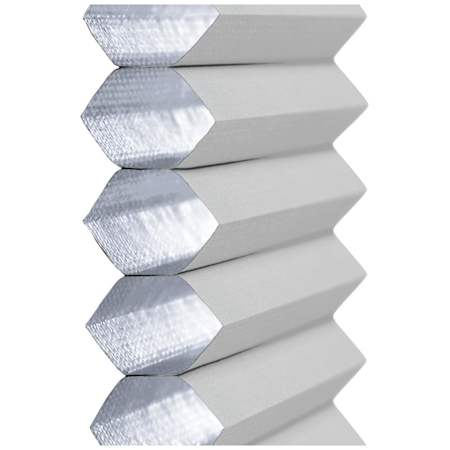

- The solar-powered blind is designed to harness the power of the sun to control the amount of daylight entering through your skylight
- Remote control for convenient skylight operation
- Low-E, low-emissivity glass, minimizes the amount of infrared and UV light that comes through your glass, without minimizing the amount of light that enters your home, which helps keep the room temperature cooler
Specifications:
- Width: 27-3/8"
- Length: 39-3/8"
- Depth: 5-5/8"
- Minimum Roof Pitch (Degrees): 0
- Maximum Roof Pitch (Degrees): 60
- Inside Curb Height: 34-1/2"
- Inside Curb Width: 22-1/2"

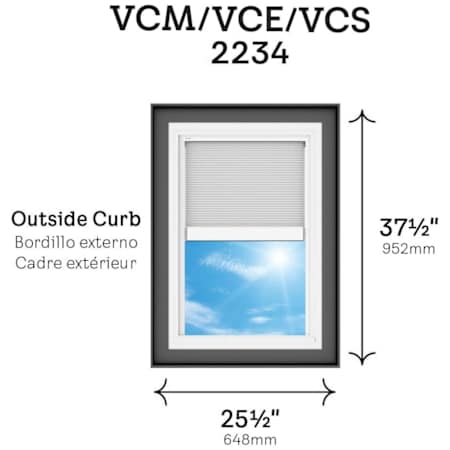

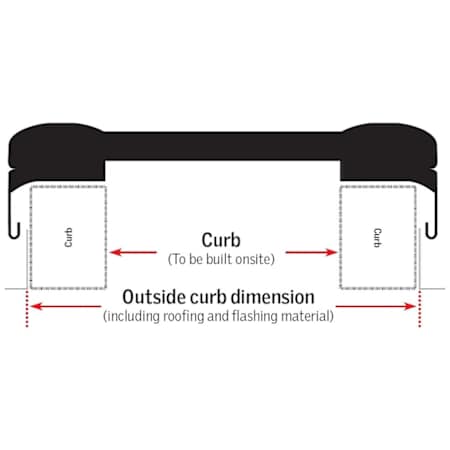

- Outside Curb Width: 25-1/2"
- Outside Curb Height: 37-1/2"
- Ventilation: Manual Venting
- Skylight Glazing: Laminated
Dimensions and Measurements
Depth | 5.63 in. |
Inside Curb Height | 34.5 in. |
Inside Curb Width | 22.5 in. |
Length | 39.38 in. |
Maximum Roof Pitch (Degrees) | 60 Degrees |
Minimum Roof Pitch (Degrees) | 0 Degrees |
Outside Curb Height | 37.5 in. |
Outside Curb Width | 25.5 in. |
Product Weight | 70.2 lbs. |
Width | 27.38 in. |
Dimensions and Measurements
Depth | 5.63 in. |
Inside Curb Height | 34.5 in. |
Inside Curb Width | 22.5 in. |
Length | 39.38 in. |
Maximum Roof Pitch (Degrees) | 60 Degrees |
Minimum Roof Pitch (Degrees) | 0 Degrees |
Outside Curb Height | 37.5 in. |
Outside Curb Width | 25.5 in. |
Product Weight | 70.2 lbs. |
Width | 27.38 in. |
Included Components
Includes Remote | Yes |
Screen Included | Yes |
Included Components
Includes Remote | Yes |
Screen Included | Yes |
Characteristics and Features
Blind Operation | Solar Powered |
Control Type | Remote |
Function | Skylight |
Low-E | Yes |
Material | Glass, Wood |
Mount Type | Curb |
Skylight Glazing | Laminated |
Skylight Ventilation | Manual Venting |
Characteristics and Features
Blind Operation | Solar Powered |
Control Type | Remote |
Function | Skylight |
Low-E | Yes |
Material | Glass, Wood |
Mount Type | Curb |
Skylight Glazing | Laminated |
Skylight Ventilation | Manual Venting |
Warranty and Product Information
Collection | VCM |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
Warranty and Product Information
Collection | VCM |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
