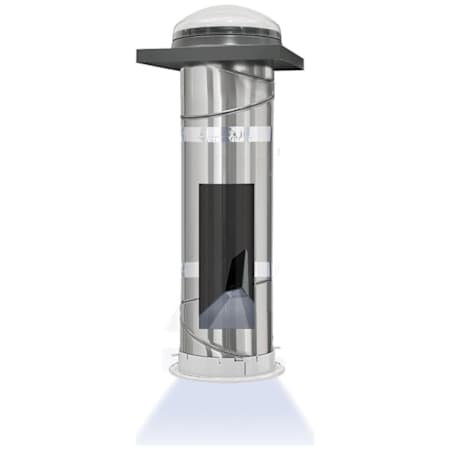

Velux 14 Inch TCR Curb Mount Sun Tunnel Skylight with Rigid Tube, Acrylic Dome, and Solar Night Light
Model: TCR 014 0000USSL|Item: bci5170742
from theTCR Collection
$587.84
Finish: Gray Flashing / Clear Dome -
25 In Stock
Details
Velux Sun Tunnel Skylights are a great way to brighten any room with energy-efficient natural light, especially interior spaces that lack windows, such as bathrooms, laundry rooms, closets, and hallways. This model includes a solar night light that is very easy to install and fits discreetly inside the rigid tube. The 3"x7" solar panel charges 2 'AA' batteries that power a series of LED lights, providing a soft glow after the sun sets.
Features:
- Acrylic skylight for durability and dependability
- This product can be installed even in situations with obstructions between the roof and the ceiling, while still permitting the passage of natural light
- Florida product approval FL6393
- 99.9% reflective rigid tubing provides brighter, whiter light output in any application and is ideal for installations that require longer tube lengths
- Includes 48" of 14" diameter rigid tubing (two 12" elbows, one 24" extension)
- Designed to be installed on any roof type with a slope between 0-60 degrees
- Maximum recommended length for 14" diameter rigid tube is 30 feet
Specifications:
- Length: 48"
- Minimum Roof Pitch (Degrees): 0
- Maximum Roof Pitch (Degrees): 60
- Inside Curb Height: 16-3/4"
- Inside Curb Width: 16-3/4"
- Cutout Height: 16-3/4"
- Cutout Width: 16-3/4"
- Ventilation: Non-Venting
- Skylight Glazing: Acrylic
Dimensions and Measurements
Cutout Height | 16.75 in. |
Cutout Width | 16.75 in. |
Inside Curb Height | 16.75 in. |
Inside Curb Width | 16.75 in. |
Length | 48 in. |
Maximum Roof Pitch (Degrees) | 60 Degrees |
Minimum Roof Pitch (Degrees) | 0 Degrees |
Outside Curb Height | 19.75 in. |
Outside Curb Width | 19.75 in. |
Product Weight | 26.5 lbs. |
Tubing Length | 48 in. |
Dimensions and Measurements
Cutout Height | 16.75 in. |
Cutout Width | 16.75 in. |
Inside Curb Height | 16.75 in. |
Inside Curb Width | 16.75 in. |
Length | 48 in. |
Maximum Roof Pitch (Degrees) | 60 Degrees |
Minimum Roof Pitch (Degrees) | 0 Degrees |
Outside Curb Height | 19.75 in. |
Outside Curb Width | 19.75 in. |
Product Weight | 26.5 lbs. |
Tubing Length | 48 in. |
Characteristics and Features
Function | Skylight |
Material | Acrylic, Galvanized Steel |
Mount Type | Curb |
Skylight Glazing | Acrylic |
Skylight Ventilation | Non-Venting |
Tunnel Type | Rigid |
Characteristics and Features
Function | Skylight |
Material | Acrylic, Galvanized Steel |
Mount Type | Curb |
Skylight Glazing | Acrylic |
Skylight Ventilation | Non-Venting |
Tunnel Type | Rigid |
Warranty and Product Information
Collection | TCR |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Warranty and Product Information
Collection | TCR |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
