Velux

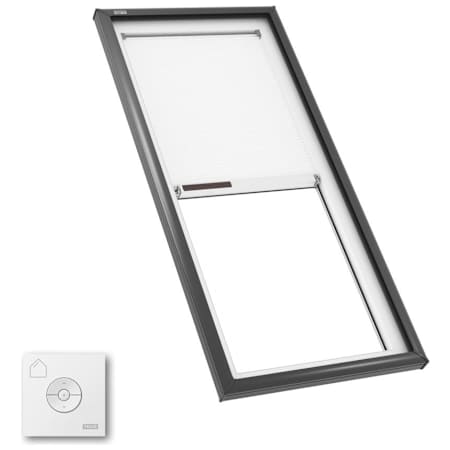

Velux FCM Fixed Curb Mount Skylight with Laminated LowE3 Glass, Solar Room Darkening Shade - 3171 (Outside Curb: 34.5 x 74.5 in) Gray Frame / Clear Glass
Velux FCM Fixed Curb Mount Skylight with Laminated LowE3 Glass, Solar Room Darkening Shade - 3171 (Outside Curb: 34.5 x 74.5 in) Gray Frame / Clear Glass
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image

Velux FCM Fixed Curb Mount Skylight with Laminated LowE3 Glass, Solar Room Darkening Shade - 3171 (Outside Curb: 34.5 x 74.5 in)

Model: FCM 3171 2004S
|
Item: bci5170663

$1,166.84
Finish: Gray Frame / Clear Glass -
10 In Stock
placeholder
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 1 to 3 business days
-
Return & Shipping Details

Details

Velux fixed Skylight Systems are an economical choice for transforming and visually expanding a room using natural light from above, and the integrated solar powered shade gives you effortless control over that light. The shade also helps block the sun’s heat during the summer and retain your home’s heat in the winter, which improves your skylight's energy efficiency up to 40%. Curb mount skylights can be installed on a flat or sloped roof and are perfect for replacing existing curb mount skylights, including old plastic bubble skylights.

Features:

  • Laminated skylight for durability and dependability
  • Curb mounted installation
  • Can be installed on a flat roof at 0° up to a 60° pitch
  • The solar-powered blind is designed to harness the power of the sun to control the amount of daylight entering through your skylight
  • Remote control for convenient skylight operation
  • Low-E, low-emissivity glass, minimizes the amount of infrared and UV light that comes through your glass, without minimizing the amount of light that enters your home, which helps keep the room temperature cooler
  • Room darkening shade features double pleated blackout cloth with a honeycomb structure and interior aluminum coating to block even the brightest sunlight
  • Standard Laminated Low-E3 Safety Glass meets building codes for out of reach applications and comes with a 10-year hail warranty against glass breakage
  • Velux does not have a flashing kit available for this size skylight
  • Florida product approval FL13303
  • Texas Department of Insurance TDI SK03

Specifications:

  • Width: 36-3/8"
  • Length: 76-3/8"
  • Depth: 3"
  • Minimum Roof Pitch (Degrees): 0
  • Maximum Roof Pitch (Degrees): 60
  • Inside Curb Height: 71-1/2"
  • Inside Curb Width: 31-1/2"
  • Ventilation: Non-Venting
  • Skylight Glazing: Laminated

Manufacturer Resources

WarrantyOwners Manual

Dimensions and Measurements

Depth
3 in.
Inside Curb Height
71.5 in.
Inside Curb Width
31.5 in.
Length
76.38 in.
Maximum Roof Pitch (Degrees)
60 Degrees
Minimum Roof Pitch (Degrees)
0 Degrees
Outside Curb Height
74.5 in.
Outside Curb Width
34.5 in.
Product Weight
120.8 lbs.
Width
36.38 in.

Dimensions and Measurements

Depth
3 in.
Inside Curb Height
71.5 in.
Inside Curb Width
31.5 in.
Length
76.38 in.
Maximum Roof Pitch (Degrees)
60 Degrees
Minimum Roof Pitch (Degrees)
0 Degrees
Outside Curb Height
74.5 in.
Outside Curb Width
34.5 in.
Product Weight
120.8 lbs.
Width
36.38 in.

Included Components

Includes Remote
Yes

Included Components

Includes Remote
Yes

Characteristics and Features

Blind Operation
Solar Powered
Control Type
Remote
Function
Skylight
Low-E
Yes
Material
Aluminum, Glass
Mount Type
Curb
Skylight Glazing
Laminated
Skylight Ventilation
Non-Venting

Characteristics and Features

Blind Operation
Solar Powered
Control Type
Remote
Function
Skylight
Low-E
Yes
Material
Aluminum, Glass
Mount Type
Curb
Skylight Glazing
Laminated
Skylight Ventilation
Non-Venting

Warranty and Product Information

Collection
FCM
Country Of Origin
USA
Energy Star
Yes
Made in America
Yes

Warranty and Product Information

Collection
FCM
Country Of Origin
USA
Energy Star
Yes
Made in America
Yes
