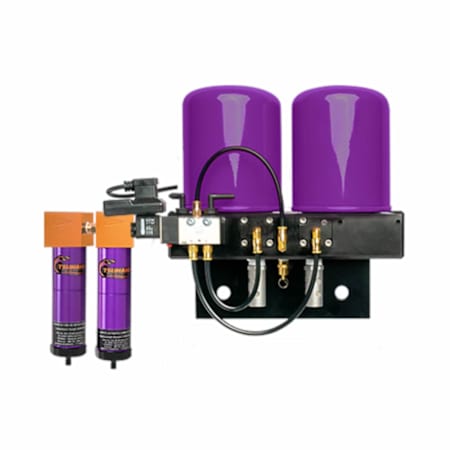

Tsunami Compressed Air Pure 5 Series 5-HP 1/2" Regenerative Air Dryer (15 CFM) with Float Drain

Product Information:

• Tsunami 15 CFM Regenerative Dryer System
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil and particulates before entering the dryer


• Compact, Expandable Design
  • Comes complete with pre-filter, auto drains & mount bracket
  • Installs in minutes between receiver tank and piping
  • Great for mobile operations; auto paint, powder coating, etc.


• Stage 1: Water Separator: Water and particulates are removed down to 10 micron


• Stage 2: Oil Coalescing Filter
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • Lowest operating cost & maintenance of any dryer


• 1/4" Inlet & 1/2" Outlet NPT Connectors
  • Max inlet pressure is 175 PSI; Min 80 PSI
  • Requires connection to 120-volt outlet
  • Handles up to 150°F inlet air temperature


• Float Drain
  • Automatically discharges drainage
  • Float type drain valve drastically reduces maintenance
  • Threaded for optional electronic drain (Sold Separately)



Specifications:

• Warranty: 90 Day Commercial and 90 Day Residential
• Product Weight: 20 lbs
• Fuel Type: Electric
• Height: 12"
• Length: 25"

Air Dryer Specifications:

• Air Inlet Size: 1/4"
• Air Outlet Size: 1/2"
• Automatic Drain Valve Included

Pump Specifications:

• After Cooler Included
