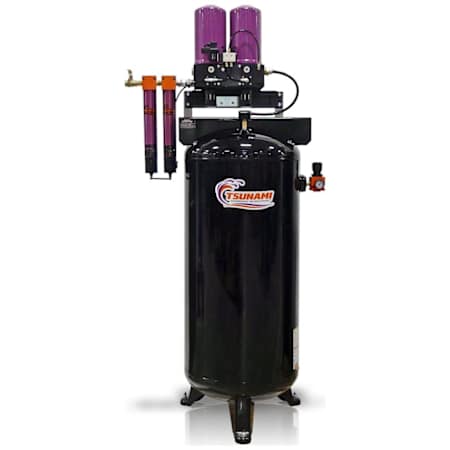

Tsunami Compressed Air Pure-10T Series 10-HP 60-Gallon Tank Mounted Regenerative Air Dryer (40 CFM) with Moisture Minder Pneumatic Drain (220V)

Product Information:

• ***Air Compressor Not Included***


• Tsunami 40 CFM Tank Mounted Regenerative Dryer System
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil, and particulates before entering the dryer


• Compact, Expandable Design
  • Comes complete with pre-filter, auto drains, & mount bracket
  • Great for mobile operations; auto paint, powder coating, etc.


• Stage 1: Water Separator: Water and particulates are removed down to 10 micron


• Stage 2: Oil Coalescing Filter: Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron


• 1/2 " Inlet & 1/2" Tank Outlet NPT Connectors
  • Maximum inlet pressure is 175 PSI
  • Requires connection to 220-volt outlet
  • Handles up to 150°F inlet air temperature


• Moisture Minder Pneumatic Drains: Automatically eliminates water & oil in the filter sumps


• 60-Gallon Air Tank
  • Allows compressed air system to increase capacity by storing
  • Ready-to-use air w/ regulator and pressure gauge



Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 190 lbs
• Fuel Type: Electric
• Length: 72"

Included Accessories:

• Pressure Gauge Included

Air Dryer Specifications:

• Air Inlet Size: 1/2"
• Automatic Drain Valve Included

Tank Specifications:

• Tank Outlet Size: 1/2"
• Tank Size: 60

Pump Specifications:

• After Cooler Included
