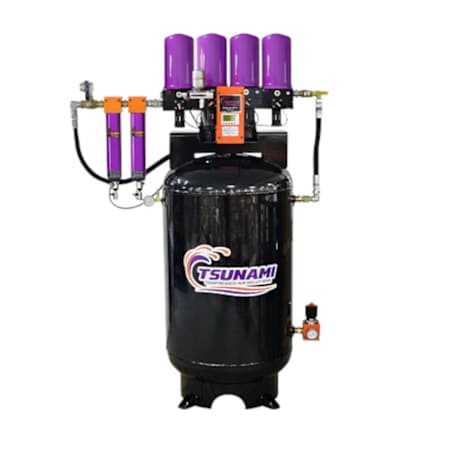

Tsunami Compressed Air 1" Ultra Series 20-HP 80-Gallon Tank Mounted Regenerative Air Dryer (80 CFM) with Moisture Minder Pneumatic Drain

Product Information:

• ***Air Compressor Not Included***


• Ultra Series Tank Mounted Dryer
  • Comes fully assembled for easy installation
  • The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator


• Regenerative Dryer
  • Handles up to 150°F inlet air temperature
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil, and particulates before entering the dryer


• Stage 1: Water Separator
  • Filters particulate down to 10 microns
  • Removes water up to one quarter per minute


• Stage 2: Oil Coalescing Filter
  • Non-wicking layer collects & drains oils preventing entrainment
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron


• Built-In Bypass System: Allows the dryer to be shutoff for maintenance or service without stopping production


• 80-Gallon Tank
  • Ready-to-use air w/ regulator and pressure gauge
  • Allows compressed air system to increase capacity by storing


• Moisture Minder Pneumatic Drains
  • Automatically eliminates water & oil in the filter sumps
  • Valve operates without pressure drop in air system


• Programmable Logic Control (PLC)
  • Controls the cycling of the dryers for efficient operation
  • Great for mobile operations; auto paint, powder coating, etc.



Specifications:

• Warranty: 3 Year Commercial and 3 Year Residential
• Product Weight: 335 lbs
• Fuel Type: Electric
• Height: 69"
• Length: 51"

Air Dryer Specifications:

• Air Inlet Size: 1"
• Air Outlet Size: 1"
• Automatic Drain Valve Included

Tank Specifications:

• Tank Size: 80

Pump Specifications:

• After Cooler Included
