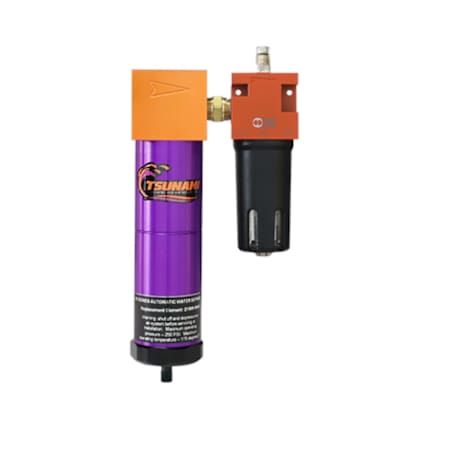

Tsunami Compressed Air Filtration Package #1 - 1/4" Water Separator and Lubricator (20 CFM)

Product Information:

• Tsunami 20 Series Filtration Package #1
  • Includes water separator filter and lubricator
  • Packaged for air tools, auto shops, robotics, & machine tools


• Oversize Filter Casing w/ Mounting Brackets
  • Filter heads machined from 6061 Aircraft Aluminum
  • Anodized inside and out for ultimate durability against corrosion


• Rated Up To 20 CFM
  • Exceeding 20 SCFM may result in moisture carryover
  • 250 PSI maximum pressure; 122°F maximum temperature
  • 1/4" input & output connections fit many systems


• Water Separator
  • Filters particulate down to 10 microns
  • Removes water up to one quarter per minute


• Lubricator
  • Delivers proportional flow of lubricant per SCFM of air
  • Adjust by turning the slotted needle inside flow gauge on head


• Integral Automatic Float Drain
  • Ejects water and oil from large drain sump
  • Threaded for optional electronic drain (sold separately)



Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 2.5 lbs
• Height: 9-1/2"

Air Tool Specifications:

• CFM: 20

Air Dryer Specifications:

• Air Inlet Size: 1/4"
• Air Outlet Size: 1/4"
