The Tile Redi 23VCBNF03676 has been discontinued

** See similar or replacement items below **

Tile Redi
Alternate View
Alternate View
Alternate View
Alternate View
Alternate View
Alternate View
Item # bci3746410

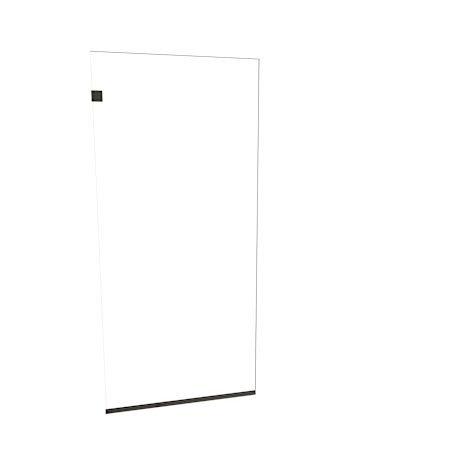

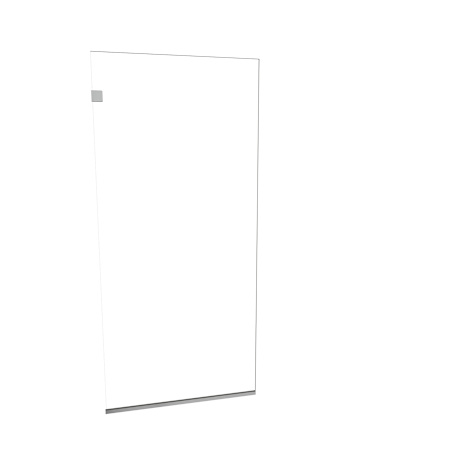

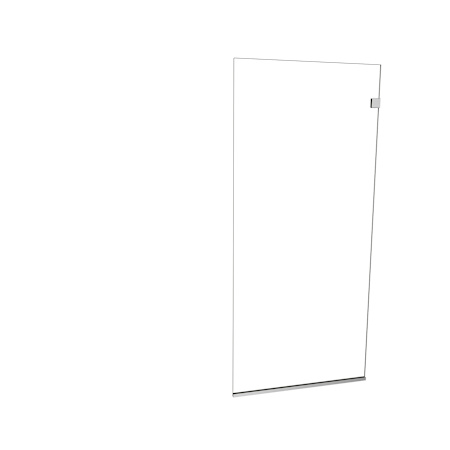

Tile Redi Redi Screen 76" High x 36" Wide Frameless Shower Screen with Clear Glass

Model: 23VCBNF03676
|
Item: bci3746410

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Redi Screen 2000 value series frameless glass shower screen. Safety tempered glass. Another innovative product by Tile Redi.

Tile Redi 23VCNF03676 Features:

  • Covered under Tile Redi's limited lifetime residential warranty and 1 year commercial warranty
  • 3/8" thick clear safety-tempered glass will showcase your shower's design
  • A frameless design gives a modern, sleek look to the shower
  • Screens are stationary and block most of the water from the shower, leaving remaining space open for use as a doorway
  • Design allows the unit to be installed for either left or right entry
  • Minimum of a 1-1/2" wide curb and wall jamb are required with proper wood blocking to support the weight of the enclosure
  • Included hardware provides style to match your shower
  • Screen can be applied to fiberglass or tile bases (sold separately) - please note special requirements for installing screen into a Tile Redi shower base
  • NOTE: The biggest challenge in selecting the correct shower door is determining the finished opening width - be sure your desired opening measures between the "Enclosure Width Range" note below

Tile Redi 23VCNF03676 Specifications:

  • Overall Height: 76" (bottom to top of screen)
  • Screen Width: 36" (left to right of screen)
  • Recommended Enclosure Width: 72"
  • Recommended Door Width: 36"
  • Opening Direction: Reversible
  • Glass Thickness: 3/8"
  • Number of Panels: 1
Additional Tile Redi Links

Dimensions and Measurements

Glass Thickness
0.375 in.
Height
76 in.
Maximum Width
36 in.
Minimum Width
36 in.
Nominal Width
36 in.
Product Weight
102.5 lbs.
Width
36 in.

Dimensions and Measurements

Glass Thickness
0.375 in.
Height
76 in.
Maximum Width
36 in.
Minimum Width
36 in.
Nominal Width
36 in.
Product Weight
102.5 lbs.
Width
36 in.

Included Components

Installation Hardware Included
Yes

Included Components

Installation Hardware Included
Yes

Characteristics and Features

Configuration
Shower Door
Door Swing
Right, Reversible, Left
Door Type
Shower Screen
Frame Type
Frameless
Glass Features
Clear Glass
Material
Glass, Stainless Steel, Aluminum
Number Of Doors
0
Theme
Modern

Characteristics and Features

Configuration
Shower Door
Door Swing
Right, Reversible, Left
Door Type
Shower Screen
Frame Type
Frameless
Glass Features
Clear Glass
Material
Glass, Stainless Steel, Aluminum
Number Of Doors
0
Theme
Modern

Warranty and Product Information

ANSI Certification
Z97.1
Approved for Commercial Use
Yes
Certifications
ANSI
Collection
Redi Screen
Commercial Warranty
1 Year Limited
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
Limited Lifetime

Warranty and Product Information

ANSI Certification
Z97.1
Approved for Commercial Use
Yes
Certifications
ANSI
Collection
Redi Screen
Commercial Warranty
1 Year Limited
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
