The Thermador VCI236DS has been discontinued
** See similar or replacement items below **
Item # bci3918007
Thermador Masterpiece® 36 Inch Wide Custom Insert Range Hood
Model: VCI236DS|Item: bci3918007
from theMasterpiece Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Choose from a variety of blowers to suit your kitchens needs
- Washable mesh filters make cleaning up easy and saves you the hassle of buying replacement filters
- 2 halogen lights provide task lighting for your cooktop
- Push Button controls allow you to easily switch between 3 different speeds
- Manufacturer warranty includes 2 year limited coverage
Specifications:
- Available Without Blower: Yes
- Duct Size: 10" Round
- Duct Discharge: Vertical
- Bulb Type: Halogen
- Width: 33-5/8"
- Depth: 18-5/8"
- Height: 5-3/4"
- Height Above Cooktop: 30"
- Voltage: 120V
- Wattage: 40W
- Watts Per Bulb: 20W

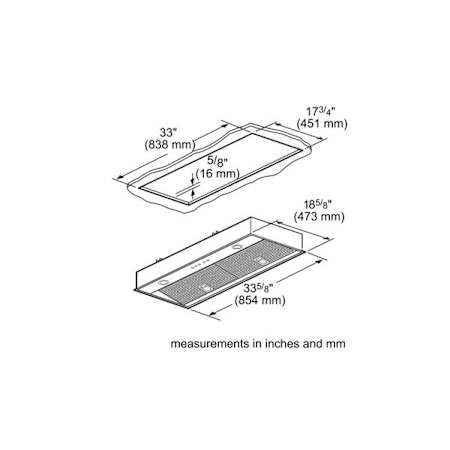

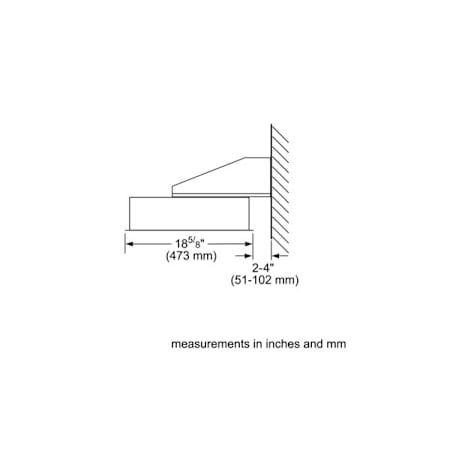

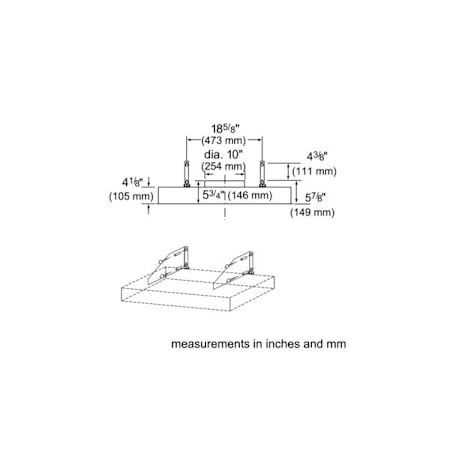

Dimensions and Measurements
Depth | 18.625 in. |
Duct Size | 10" Round |
Height | 5.75 in. |
Height Above Cooktop | 30" |
Nominal Width | 34 in. |
Product Weight | 27 lbs. |
Width | 33.625 in. |
Dimensions and Measurements
Depth | 18.625 in. |
Duct Size | 10" Round |
Height | 5.75 in. |
Height Above Cooktop | 30" |
Nominal Width | 34 in. |
Product Weight | 27 lbs. |
Width | 33.625 in. |
Included Components
Available Without Blower | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Light Included | Yes |
Included Components
Available Without Blower | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Built-In, Remote, In-Line |
Bulb Base | G4 |
Bulb Type | Halogen |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Characteristics and Features
Blower Type | Built-In, Remote, In-Line |
Bulb Base | G4 |
Bulb Type | Halogen |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Electrical and Operational Information
Amperage | 15 |
Frequency | 60 Hertz |
Speeds | 3 |
Voltage | 120 |
Wattage | 40 |
Watts Per Bulb | 20 |
Electrical and Operational Information
Amperage | 15 |
Frequency | 60 Hertz |
Speeds | 3 |
Voltage | 120 |
Wattage | 40 |
Watts Per Bulb | 20 |
Warranty and Product Information
Certifications | ETL, UL |
Manufacturer Warranty | 2 Year Limited |
Outdoor Approved | No |
Warranty and Product Information
Certifications | ETL, UL |
Manufacturer Warranty | 2 Year Limited |
Outdoor Approved | No |
