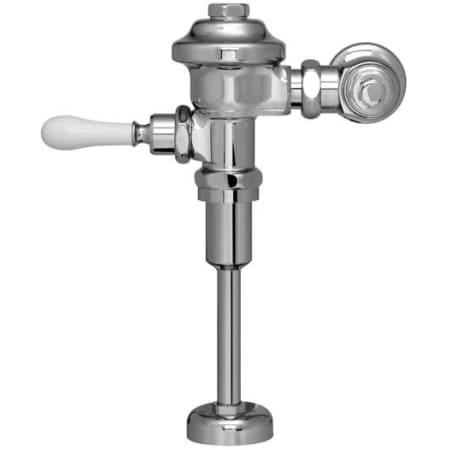

Sloan Exposed, Low Consumption (1.0 gpf/3.8 Lpf), Vintage Style Urinal Flushometer, for 3/4" top spud urinals.

Exposed, Low Consumption (1.0 gpf/3.8 Lpf), Vintage Style Urinal Flushometer, for 3/4" top spud urinals.

Quiet, Exposed, Diaphragm Type, Polished Nickel Plated Urinal Flushometer

A timeless design that celebrates Sloan Valve Company's 100 year anniversary. W. E. Sloan introduced the Royal Flush Valve in 1906. Its innovation set the standard against which all flush valves have been measured. One hundred years later, the Royal remains the world leader in performance, design and durability. Sloan's focus has been to deliver products that perform consistently and reliably, and the Sloan Royal has been the very definition of quality and dependability for the past 100 years. Sloan has continued this tradition with innovative plumbing solutions by enhancing proven technology. Examples of the Royal's benchmark technology include:

• PERMEX(tm) Synthetic Rubber Diaphragm w/Dual Filtered Fixed Bypass
• ADA Compliant Non-Hold-Open Handle with Triple Seal Handle Packing
• Aesthetic Vintage Charm
• Porcelain Handle
• 3/4" I.P.S. Screwdriver Bak-Chek(tm) Angle Stop
• Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Coupling Nut
• Spud Coupling and Flange for ¾" Top Spud
• Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID(tm) Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX(tm) Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.2, and Military Specification V-29193.
