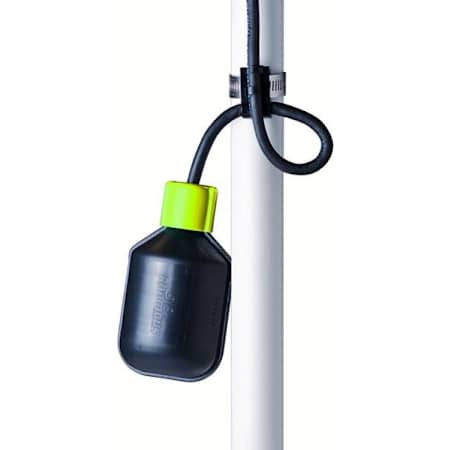

SJE Rhombus SignalMaster Sensor Switch (Normally Open/High Level) with 30' Cord

Features:

• SJE SignalMaster Control Switch (Normally Open Contacts): Used in accurately monitor HIGH liquid levels


• For Use In Sump, Sewage and Effluent Applications: Rated @ 5A Max 125/250VAC - Max Water Depth 30', 13PSI


• "High Level" Normally Open Contacts (Yellow Colored Cap)
  • Turns on (closes) when the switch tips slightly above horizontal
  • Turns off (opens) when the switch drops slightly below horizontal


• PVC Float Housing (2.74"D x 4.83"L): High impact, corrosion-resistant design for liquids up to 140 F


• Narrow-Angle, Mechanically Activated, Snap Action Contacts: Provides a tight control differential of 1.5"


• 30' SJOW CPE Cord w/ Bare Leads For Hardwiring Applications: Flexible, 18-gauge gauge construction that's water resistant


• Includes Mounting Clamp: For apps. where switch is attached to discharge pipe or rail system


• *Note - Not Recommended For Controlling*: Electrical loads less than 100 MA, 12 VAC and Non-Arch Electric Loads


• UL Recognized For Use In Non-Potable Water and Sewage


• 5-Year Limited Warranty
