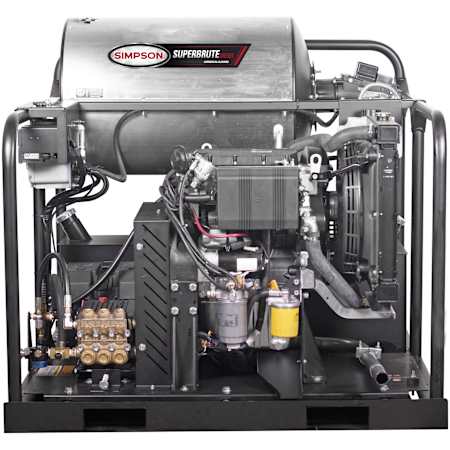

Simpson 4000 PSI 6 GPM Diesel Powered Hot Water Pressure Washer with 898 CC Kubota Engine
Model: 65176|Item: bci5210924
Details
The Simpson SBD4060441EDC1 is an industrial-grade hot water pressure washer built for maximum performance and durability in demanding appliCations. Powered by a Kubota DH902 diesel engine with key start ignition, it delivers 4,000 PSI at 6.0 GPM through a belt-driven Udor CKD 6.5/44 S industrial triplex pump for reliable, continuous-duty operation. A Wayne 12VDC diesel burner paired with a 20" horizontal heating coil provides powerful hot water cleaning capability, while the shared 30-gallon diesel fuel system supports extended runtime. Built on a heavy-duty powder-coated steel frame with vibration isolators and a downstream detergent injection system, this unit is engineered for industrial users who require consistent hot water performance, efficiency, and long service life.
Features:
- Udor industrial triplex Pump with 1750 RPM slow-speed design
- Kubota D902 diesel engine is equipped with a key start feature
- Includes trigger gun, lance, high-pressure soap injector, and engine oil
- Armor 50 ft. high-temperature hose is flexible and abrasion-resistant with a non-marring polyurethane outer jacket with QC fittings
- Welded steel frame construction with a powder-coated finish for durability and corrosion resistance
- 4 Quick connect nozzle tips for a variety of cleaning appliCations
Specifications:
- Grade: Industrial
- Water Temperature: Hot
- Flow Rate: 6 GPM
- Maximum Water Pressure: 4000 PSI
- Frame Type: Skid Mount
- Warranty: 3 Year Commercial Engine, 5 Year Commercial Pump, 10 Year Frame
Dimensions:
- Height: 40"
- Width: 45"
- Length: 49"
- Product Weight: 1060 lbs
- Hose Length: 100 ft
- Hose Diameter: 3/8"
Engine and Motor Specifications:
- 898 CC
- Engine Brand: Kubota
- Starting System: 12-Volt Key Start
- Fuel Tank Capacity: 26 Gals
- Fuel Type: Diesel
- Burner Fuel Tank Capacity: 30 Gals
- Burner Fuel Type: Diesel
Manufacturer Resources
Owners ManualDimensions and Measurements
Burner Fuel Tank Capacity | 30 Gallons |
Flow Rate (GPM) | 6 |
Fuel Tank Capacity | 26 Gallons |
Height | 40 in. |
Hose Diameter | 0.375 in. |
Hose Length (Feet) | 100 ft. |
Length | 49 in. |
Product Weight | 1060 lbs. |
Water Pressure (Max) | 4000 PSI |
Width | 45 in. |
Dimensions and Measurements
Burner Fuel Tank Capacity | 30 Gallons |
Flow Rate (GPM) | 6 |
Fuel Tank Capacity | 26 Gallons |
Height | 40 in. |
Hose Diameter | 0.375 in. |
Hose Length (Feet) | 100 ft. |
Length | 49 in. |
Product Weight | 1060 lbs. |
Water Pressure (Max) | 4000 PSI |
Width | 45 in. |
Included Components
Temperature Control | No |
Included Components
Temperature Control | No |
Characteristics and Features
Burner Fuel Type | Diesel |
Engine Brand | Kubota |
Frame Type | Skid Mount |
Hose Connection Type | Quick-Connect |
Hose Material | Wire Reinforced |
Nozzles | Quick Connect Tips (4) |
Pump Brand | Udor |
Pump Type | Triplex Plunger |
Spray Gun Connection | Quick-Connect |
Characteristics and Features
Burner Fuel Type | Diesel |
Engine Brand | Kubota |
Frame Type | Skid Mount |
Hose Connection Type | Quick-Connect |
Hose Material | Wire Reinforced |
Nozzles | Quick Connect Tips (4) |
Pump Brand | Udor |
Pump Type | Triplex Plunger |
Spray Gun Connection | Quick-Connect |
Electrical and Operational Information
Cubic Capacity | 898 cc |
Fuel Type | Diesel |
Starting System | 12-Volt Key Start |
Water Temperature | Hot |
Electrical and Operational Information
Cubic Capacity | 898 cc |
Fuel Type | Diesel |
Starting System | 12-Volt Key Start |
Water Temperature | Hot |
Warranty and Product Information
CARB approved | No |
Manufacturer Warranty | 10 Year Frame, 3 Year Commercial Engine, 5 Year Commercial Pump |
Warranty and Product Information
CARB approved | No |
Manufacturer Warranty | 10 Year Frame, 3 Year Commercial Engine, 5 Year Commercial Pump |
