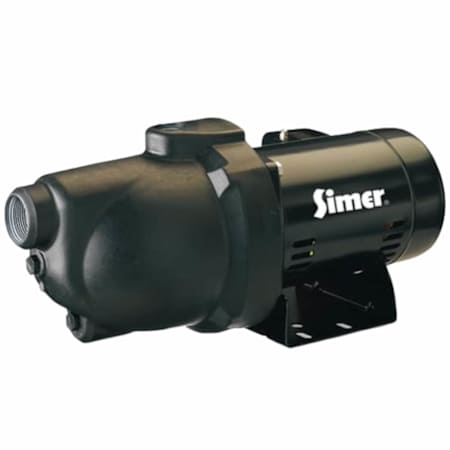

Simer 7.4 GPM 1/2 HP Thermoplastic Shallow Well Jet Pump (115V)
Model: 3105P-10|Item: bci5172270
Details
Product Information:
- 1/2 HP Shallow Well Jet Pump: Ideal for use in pumping at depths of 25' or less
- 115V Heavy-Duty Motor: Easily connects to existing power source
- Fiberglass-Reinforced Thermoplastic Pump Housing: Provides total corrosion resistance
- Self-Priming Design: Requires initial priming to operate
- Dust-Proof Cover: Protect all electrical components from debris and insects

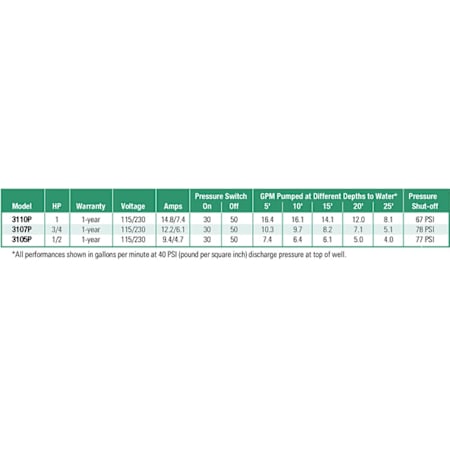

- Pumps 7.4GPM at 5' Depth
- Pumps 5GPM at 20' depth
- Pressure Switch Setting: 30-50 psi
- Suction Size: 1-1/4" NPT
- Discharge Size: 1" NPT female
- Recommended Breaker: 15 amp
- 1 Year Limited Warranty
Dimensions and Measurements
Flow Rate (GPM) | 7.4 |
Height | 10 in. |
Inlet Diameter | 1.25 in. |
Length | 20 in. |
Outlet Diameter | 1 in. |
Product Weight | 21 lbs. |
Width | 11 in. |
Dimensions and Measurements
Flow Rate (GPM) | 7.4 |
Height | 10 in. |
Inlet Diameter | 1.25 in. |
Length | 20 in. |
Outlet Diameter | 1 in. |
Product Weight | 21 lbs. |
Width | 11 in. |
Characteristics and Features
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Submersible | No |
Characteristics and Features
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Submersible | No |
Electrical and Operational Information
Amperage | 4.95 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 77 |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 4.95 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 77 |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
