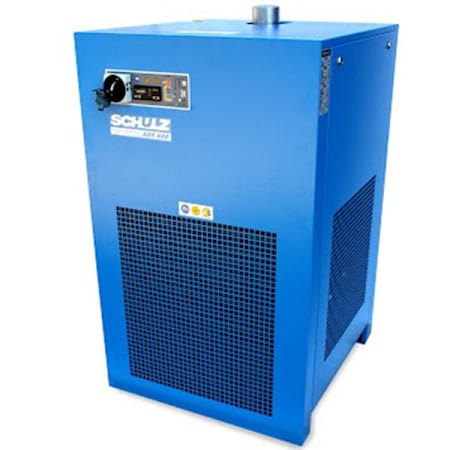

Schulz ADS 480 Non-Cycling Refrigerated Air Dryer (480 CFM 230V 1-Phase)

Product Information:

• Excellent Performance
  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum


• Energy Efficient Sizing: Matches the compressor's displacement, saving energy


• Electronic Controller
  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe


• High-Efficiency Compressor: Circulates the refrigerant through the system


• Totally New Design
  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 230V, single phase circuit


• Environmentally Friendly Refrigerant: R407c is effective & easier on the environment


• Compact Footprint
  • Conveniently sized 27x27x44
  • Weighs 317 pounds; simple installation



Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 317 lbs
• Fuel Type: Electric
• Height: 44"
• Length: 27"

Air Dryer Specifications:

• Air Inlet Size: 2-1/2"
• Air Outlet Size: 2-1/2"
• Automatic Drain Valve Included

Pump Specifications:

• After Cooler Included
