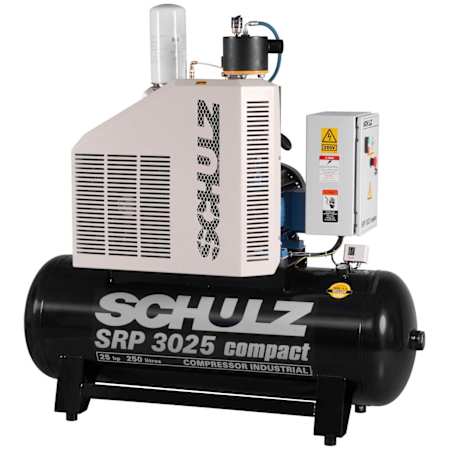

Schulz 25 HP 80 Gal 125 Max PSI Stationary Electric (208, 230 Volt 3 Phase) Open Rotary Air Compressor

Product Information:

• SRP 3025 Compact 25-HP 80-Gallon Rotary Screw Compressor (208-230V 3-Phase)
  • Combines technology and experience to generate efficiency and productivity
  • Synonymous with versatility for applications requiring high performance


• Compact, 2-In-1 System - Open Compressor & Receiver
  • Only 61" (L/W) x 26" (D) x 60" (H)
  • Tank-mounted design allows for a compact foot print


• Continuous 100% Duty Cycle: Runs your application efficiently 24/7


• Rotary Air End
  • 89 CFM @ 125 PSI (125 Max PSI); 100% Duty Cycle
  • Oil-injected, belt-driven design for efficient operation


• 25-HP TEFC IP55 Electric Motor (208-230V 3-Phase)
  • Provides an efficient and reliable power source
  • Automatic starters with phase and sequence failure detection


• 24V Microprocessor Controller
  • Easily adjustable parameters of operation
  • Provides constant reading for simple monitoring
  • Helps simplify troubleshooting compressor issues


• 80-Gallon Horizontal Air Receiver (ASME Certified): Ensures maximum safety during operation


• 12-Month Warranty

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 60"
• Length: 61"
• Product Weight: 864 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Lubrication Type: Oil Lubricated
• CFM: 89
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 25 HP
• dB Rating: 86
• Voltage: 208, 230V
