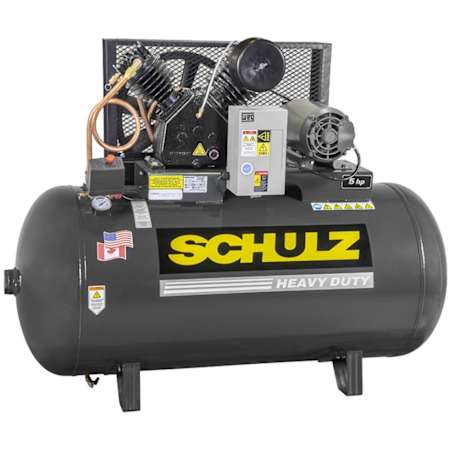

Schulz 5 HP 80 Gal 175 Max PSI V-Series Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor with Horizontal Tank

Product Information:

• WEG Electric Motor: 5 HP motor reliably handles commercial duty demands


• V-Series Cast Iron Pump
  • Runs cooler, lasts longer due to the space between each cylinder
  • Deeper cylinder fins for additional heat dissipation


• Oversized Main Bearings: Sturdy & reliable


• Swedish Steel Valves: Quality components contribute to pump efficiency


• CNC Machined Components: Accurate fit produces top-notch performance


• Notched Belts Standard: Enclosed belt guard protects the belt & operators


• Powder Coated Components: Resist rust & corrosion


• 1 Year Unit With 2 Year Pump Warranty: Protects your investment

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 42"
• Width: 23"
• Length: 56"
• Product Weight: 479 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 1/2"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 16
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Voltage: 208V
• Voltage: 208V
