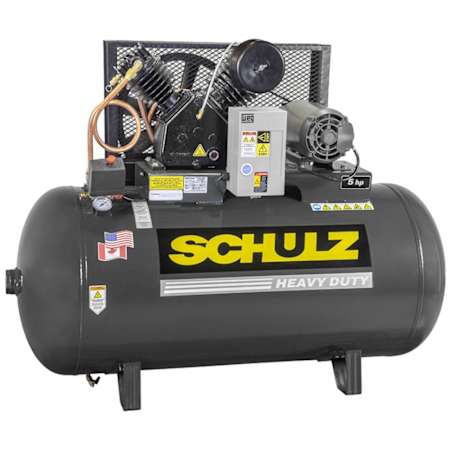

Schulz 5 HP 80 Gal 175 Max PSI V-Series Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor with Horizontal Tank
Model: 932.9345-0|Item: bci5130341
$3,702.00
13 In Stock
Details
Product Information:
- WEG Electric Motor: 5 HP motor reliably handles commercial duty demands
- V-Series Cast Iron Pump
- Runs cooler, lasts longer due to the space between each cylinder
- Deeper cylinder fins for additional heat dissipation
- Oversized Main Bearings: Sturdy & reliable
- Swedish Steel Valves: Quality components contribute to pump efficiency
- CNC Machined Components: Accurate fit produces top-notch performance
- Notched Belts Standard: Enclosed belt guard protects the belt & operators
- Powder Coated Components: Resist rust & corrosion
- 1 Year Unit With 2 Year Pump Warranty: Protects your investment
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 42"
- Width: 23"
- Length: 56"
- Product Weight: 524 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 16
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 15.6 |
Height | 42 in. |
Length | 56 in. |
Product Weight | 524 lbs. |
Width | 23 in. |
Dimensions and Measurements
CFM | 15.6 |
Height | 42 in. |
Length | 56 in. |
Product Weight | 524 lbs. |
Width | 23 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
