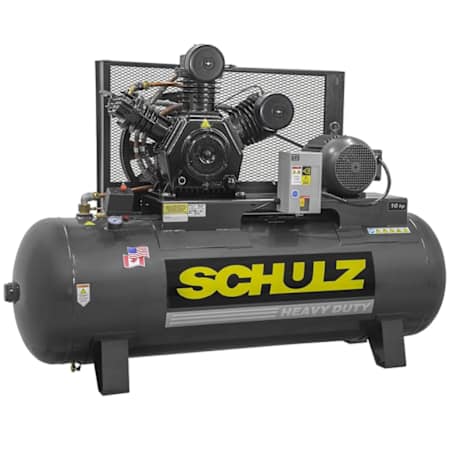

Schulz 10 HP 120 Gal 175 Max PSI V-Series Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor
Model: 932.9344-230|Item: bci5130395
$6,088.75
Special Order
Details
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 51-3/16"
- Width: 28"
- Length: 78-5/16"
- Product Weight: 836 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1"
- Tank Size: 120
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 28
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 28.1 |
Height | 51.2 in. |
Length | 78.3 in. |
Product Weight | 836 lbs. |
Width | 28 in. |
Dimensions and Measurements
CFM | 28.1 |
Height | 51.2 in. |
Length | 78.3 in. |
Product Weight | 836 lbs. |
Width | 28 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
