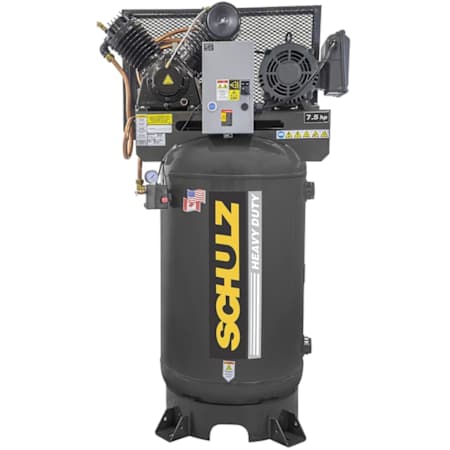

Schulz 7.5 HP 80 Gal 175 Max PSI V-Series Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor with Vertical Tank
Model: 932-9341-0|Item: bci5130434
$4,328.13
Special Order
Details
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 81"
- Width: 42"
- Length: 48"
- Product Weight: 728 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 20
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Voltage: 230V
- Voltage: 230V
Specifications
Key Specifications
- Tank Size80
- Fuel TypeElectric
- Voltage230
Dimensions and Measurements
CFM | 20.1 |
Height | 81 in. |
Length | 48 in. |
Product Weight | 728 lbs. |
Width | 42 in. |
Dimensions and Measurements
CFM | 20.1 |
Height | 81 in. |
Length | 48 in. |
Product Weight | 728 lbs. |
Width | 42 in. |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
