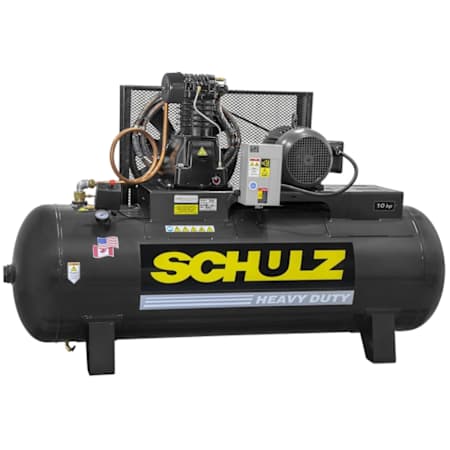

Schulz 10 HP 120 Gal 175 Max PSI L-Series Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor
Model: 932.9327-0|Item: bci5130407
$5,003.00
35 In Stock
Details
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 47"
- Width: 29"
- Length: 78"
- Product Weight: 855 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1"
- Tank Size: 120
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 28
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Voltage: 208V
- Voltage: 208V
Dimensions and Measurements
CFM | 28.4 |
Height | 47 in. |
Length | 78 in. |
Product Weight | 855 lbs. |
Width | 29 in. |
Dimensions and Measurements
CFM | 28.4 |
Height | 47 in. |
Length | 78 in. |
Product Weight | 855 lbs. |
Width | 29 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 208 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 208 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
