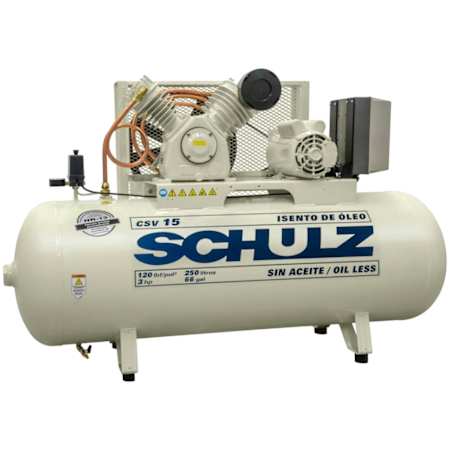

Schulz 3 HP 60 Gal 120 Max PSI Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor with Horizontal Tank
Model: 932.3385-0|Item: bci5130403
$3,000.00
11 In Stock
Details
Specifications:
- Certifications: ASME and UL
- Fuel Type: Electric
- Height: 40-5/8"
- Width: 21-5/16"
- Length: 66-7/8"
- Product Weight: 440 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Lubrication Type: Oil Free
- CFM: 7
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3 HP
- Amperage: 16A
- dB Rating: 85
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 6.6 |
Height | 40.6 in. |
Length | 66.9 in. |
Product Weight | 440 lbs. |
Width | 21.3 in. |
Dimensions and Measurements
CFM | 6.6 |
Height | 40.6 in. |
Length | 66.9 in. |
Product Weight | 440 lbs. |
Width | 21.3 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 120 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Stationary |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 120 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Stationary |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 16 |
Breaker Needs | 30 Amps |
Decibels | 85 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 120 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 16 |
Breaker Needs | 30 Amps |
Decibels | 85 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 120 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
