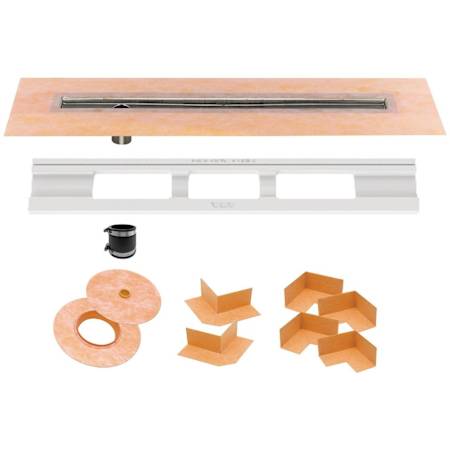

Schluter Systems Kerdi-Line 48" Linear Drain Channel Body - Offset Drain

Schluter Kerdi-Line is a low profile linear shower drain specifically designed for bonded waterproofing assemblies. Kerdi-Line can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other applications that require waterproofing and drainage.

Features:

• Create curbless, open-concept spaces
• Floors can be sloped on a single plane to Kerdi-Line, enabling the use of large-format tiles
• Channel body is made of formed stainless steel and features a Kerdi collar to create a secure waterproof connection
• Off-set and center outlets available
• Accommodates all common thicknesses of ceramic tiles and stone coverings

Specifications:

• Drain Connection: 2"
• Length: 47-1/4"
• Width: 2-1/4"
• Height: 7/8"
