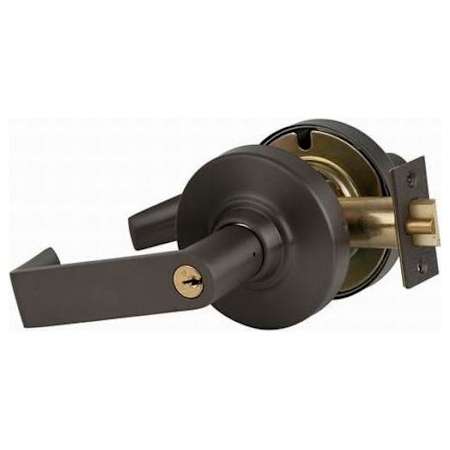

Schlage Rhodes Heavy Duty Institution Door Lever Set
Model: ND82PRHO613|Item: bci494675
from theND-Series Collection
$840.08
Finish: Oil Rubbed Bronze -
Special Order
Finish: Oil Rubbed Bronze -
Special Order
Oil Rubbed Bronze
Cylinder Type
6-Pin Cylinder
$577.06
Interchangeable Core (FSIC)
$910.60
Small Format Core (SFIC)
$748.10
6-Pin Cylinder
Function
Asylum
Entrance / Office
$709.78
Entrance
$709.78
Vestibule
$840.08
Store
$840.08
Classroom
$709.78
Corridor
$709.78
Storeroom
$709.78
Asylum
$577.06
Asylum
Lever Style
Rhodes Lever
Athens Lever
$840.08
Omega Lever
$840.08
Rhodes Lever
$577.06
Sparta Lever
$840.08
Tubular Lever
$840.08
Rhodes Lever
Free Shipping!
Leaves the Warehouse in 3 to 6 weeks
-Details
Institution Lever Lock from the Rhodes Collection
- Both levers fixed.
- Entrance by key in either lever.
- Latch: 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
- Strike: 1/4" x 4 7/8", ANSI, Square corner, no box
- Cylinder: Schlage C Keyway 6 Pin
- Door Thickness: Standard Lock Functions: 1 5/8" - 2", Vandlgard Lock Function: 1 5/8" - 1 7/8"
- Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times or emergency and their use is not recommended. Installation should be in accordance with existing codes only
Manufacturer Resources
Installation GuideDimensions and Measurements
Backset | 2-3/4", 2-3/8", 5" |
Bore Hole | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 2" |
Edge Bore | 1" |
Handle Length | 4.875 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", 5" |
Bore Hole | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 2" |
Edge Bore | 1" |
Handle Length | 4.875 in. |
Included Components
Interchangeable Core | No |
Included Components
Interchangeable Core | No |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder, Double Cylinder |
Function | Asylum, Keyed Entry, Institutional |
Handing | Reversible |
Handle Design | Rhodes |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Latch Faceplate | Square Corner |
Lever Shape | Straight |
Panic Proof | No |
Rosette Shape | Round |
Style | Commercial |
Theme | Modern |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder, Double Cylinder |
Function | Asylum, Keyed Entry, Institutional |
Handing | Reversible |
Handle Design | Rhodes |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Latch Faceplate | Square Corner |
Lever Shape | Straight |
Panic Proof | No |
Rosette Shape | Round |
Style | Commercial |
Theme | Modern |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | Yes |
Certifications | ANSI |
Collection | Rhodes |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | Yes |
Certifications | ANSI |
Collection | Rhodes |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
