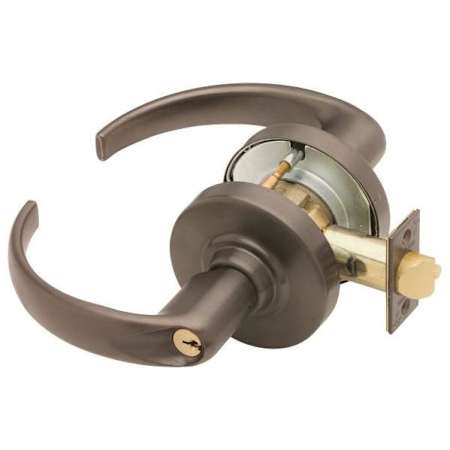

Schlage Sparta Commercial ANSI Grade 1 Keyed Entry Door Lever Set for Secured Entrances

Single Cylinder Keyed Entry Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

• Meets ANSI/BHMA Certification A156.2/Grade 1
• All metal construction for durability
• Left or right handing allows versatile application
• This product is compliant with ADA standards
• Panic Proof: Yes
• Fire Rated: Yes
• This lever and trim have concealed screws
• 10 year limited manufacturer warranty

Product Technologies:

Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.

These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.

Specifications:

• Backset: 2-3/4", 2-3/8", 3-3/4", 5"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-5/8" to 2-1/8"
• Handing: Reversible (left or right)
• Lever Length: 4.9375"
• Handle Design: Sparta
• Latch Faceplate: Square corner
• Cylinder: 6 pin C keyway
