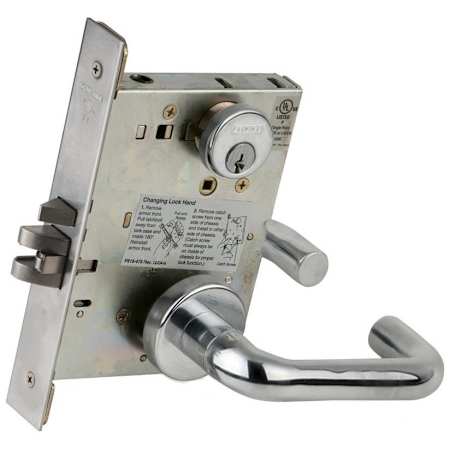

Schlage Fire Rated L-Series Commercial Grade 1 Mortise Single Cylinder Storeroom Lock with Lever Set with Full Size Interchangeable Core

Features:

• Exceeds requirements for ANSI A.156.13 BHMA Grade 1 Certifications
• UL listed fire door for up to 3 hours
• Detail the Material
• This lock body is field-reversible without being taken apart, allowing easy installation
• The backset is 2-3/4", 2-3/8" is not available
• Square latch faceplate only
• Detail the Warranty
• Detail the ADA Compliance
• Detail any Further Features Worth Pointing Out

Product Technologies:

• Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:

• Backset: 2-3/4"
• Door Thickness: 1-3/8" to 2"
• Handing: Reversible Left or Right
• Armored Front Width:1-1/4"
• Armored Front Height: 8"
• Case Width: 4-7/16"
• Case Height: 6-1/16"
• Case Depth: 1"
• Deadbolt to Lever Center to Center: 3-7/8"
• Bolt: 1" Steel
• Latch Faceplate: Round Corner, Square Corner or Drive-In
• Cylinder: 6-pin C
