Schlage

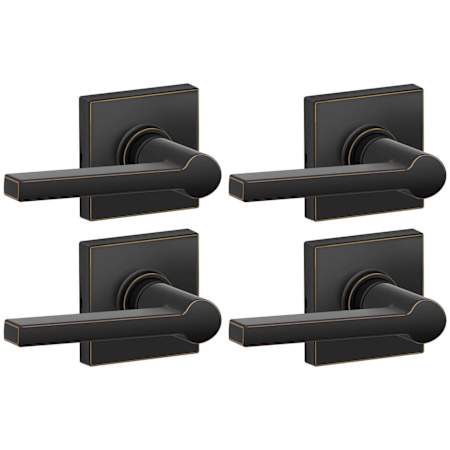

Schlage Solstice Passage Door Lever Set with Decorative Collins Trim from the J-Series - Pack of 4 Aged Bronze

Schlage Solstice Passage Door Lever Set with Decorative Collins Trim from the J-Series - Pack of 4

Model: J10SOL716COL-4PACK
|
Item: bci5126643

$147.40
Finish: Aged Bronze -
55 In Stock
Finish: Aged Bronze -
55 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Monday, March 2nd
-
Return & Shipping Details

This package includes the following items

Details

passage-functionPassage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:

  • Tested to exceed ANSI/BHMA Grade 3 security requirements
  • Constructed of high quality materials for durability and dependability
  • Installs easily with all necessary mounting hardware included
  • Covered by Schlage's 5 year finish and limited lifetime mechanical manufacturer warranties
  • ADA compliant
  • Includes four (4) passage levers

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Handle Length: 4-3/8"
  • Handle Projection: 2-3/8"
  • Trim Width: 2-1/2"
  • Trim Height: 2-1/2"
  • Product Weight: 6.84 lbs.
  • Latch Faceplate: Drive-In or Round Corner
Additional Schlage Links

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Bore Hole
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Handle Length
4.375 in.
Handle Projection
2.375 in.
Product Weight
6.84 lbs.
Trim Height
2.5 in.
Trim Width
2.5 in.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Bore Hole
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Handle Length
4.375 in.
Handle Projection
2.375 in.
Product Weight
6.84 lbs.
Trim Height
2.5 in.
Trim Width
2.5 in.

Included Components

28 Degree Latch
No

Included Components

28 Degree Latch
No

Characteristics and Features

Concealed Screws
No
Function
Passage
Handing
Left, Reversible, Right
Handle Design
Solstice
Handle Material
Metal
Handle Style
Lever
Latch Faceplate
Drive-In, Round Corner
Lever Shape
Square, Straight
Material
Zinc
Rosette Shape
Square
Theme
Modern
Trim Design
Collins

Characteristics and Features

Concealed Screws
No
Function
Passage
Handing
Left, Reversible, Right
Handle Design
Solstice
Handle Material
Metal
Handle Style
Lever
Latch Faceplate
Drive-In, Round Corner
Lever Shape
Square, Straight
Material
Zinc
Rosette Shape
Square
Theme
Modern
Trim Design
Collins

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
No
BHMA Certification
Grade 3
Certifications
ANSI, BHMA
Collection
Solstice
Fire Rated
No
Manufacturer Warranty
5 Year Finish, Limited Lifetime Mechanical
Series
Collins

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
No
BHMA Certification
Grade 3
Certifications
ANSI, BHMA
Collection
Solstice
Fire Rated
No
Manufacturer Warranty
5 Year Finish, Limited Lifetime Mechanical
Series
Collins
