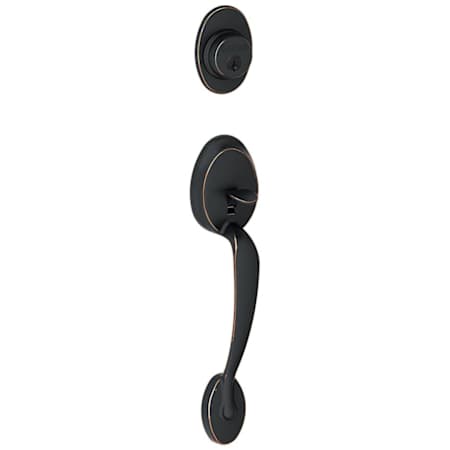

Schlage Plymouth Single Cylinder Exterior Entrance Handleset from the F-Series

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Plymouth Single Cylinder Exterior Entrance Handleset from the F-Series

The timeless design of the Plymouth works with any style in any room of your home.

Handleset Features

• Replaces virtually any existing lock
• Required installation hardware included with interior pack (sold separately)
• ANSI Grade 1 with maximum security features
• Lifetime finish and mechanical guarantee
• Designs and finishes to match any home's architectural style
• Thick Door Kit (Schlage Model # 61-075) required when door thickness is 2" or greater

Deadbolt Features:

• Utilizes the new B-Series deadbolt with increased security and easier installation!
• 1/2" of bolt left in housing when bolt is thrown for added kick-in resistance.
• Integrated anti-pick shield with Snap & Stay™ self adjusting tension provides added security and simplifies installation
• 1" Edge bore door preparation required for larger bolt housing
• Zinc bolt has hardened steel pin inside that spins in response to sawing attacks which prevents cutting or sawing
• Bolt diameter is 10% larger than typical bolts for maximum kick-in resistance
• Adjustable backset with the industry's only helical design that locks into place with no adjusting during installation
• Works for both 2-3/8" and 2-3/4" backsets.
• ADA compliant thumb turn
• Faceplates (Part 12-326): Supplied with 1/4" Round Corner, Square Corner and Drive-In Faceplates
• Strike Plates (Part 10-269): Supplied with a Round Corner Deadbolt Strike (10-116), Square Corner Full Lip Strike Plate (10-026) and Round Corner Full Lip Strike Plate (10-027) with Dimensions of 2-1/4" x 1-5/8"

Note: New interior packs will not work with old exterior packs. New exterior handlesets will not work with old interior packs.

Model Conversions:

• Old F358 - New F58
• Old F359 - New F59
• Old F362 - New F62
• Old F392 - New F92
• Old F394 - New F94
