Schlage
Schlage Plymouth Privacy Door Knob Set with Decorative Camelot Trim - Pack of 4 Aged Bronze
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image

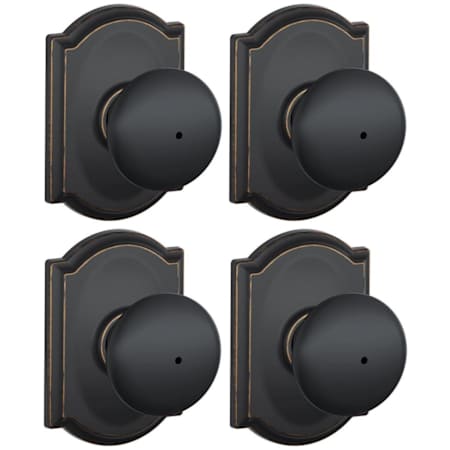

Schlage Plymouth Privacy Door Knob Set with Decorative Camelot Trim - Pack of 4 Aged Bronze
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image

Schlage Plymouth Privacy Door Knob Set with Decorative Camelot Trim - Pack of 4

Model: F40PLY716CAM-4PACK
|
Item: bci5126708

$155.80
Finish: Aged Bronze -
15 In Stock
Finish: Aged Bronze -
15 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

This package includes the following items

Details

privacy-functionPrivacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

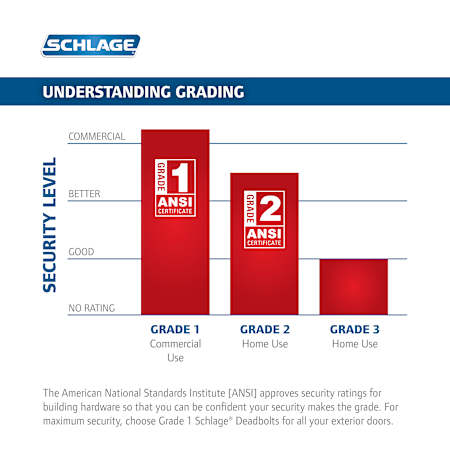

  • Tested to exceed ANSI/BHMA Grade 2 security requirements
  • Constructed of high quality materials for durability and dependability
  • Installs easily with all necessary mounting hardware included
  • Covered by Schlage's 5 year finish and limited lifetime mechanical manufacturer warranties
  • Includes four (4) privacy knobs

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 7/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Handle Width: 2-3/16"
  • Handle Height: 2-3/16"
  • Handle Projection: 2-3/8"
  • Trim Width: 2-3/4"
  • Trim Height: 4-1/8"
  • Product Weight: 6 lbs.
  • Latch Faceplate: Drive-In or Round Corner
Additional Schlage Links

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Bore Hole
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
7/8"
Handle Height
2.21 in.
Handle Projection
2.375 in.
Handle Width
2.21 in.
Product Weight
6 lbs.
Trim Height
4.125 in.
Trim Width
2.75 in.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Bore Hole
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
7/8"
Handle Height
2.21 in.
Handle Projection
2.375 in.
Handle Width
2.21 in.
Product Weight
6 lbs.
Trim Height
4.125 in.
Trim Width
2.75 in.

Characteristics and Features

Concealed Screws
No
Function
Privacy
Handing
Left, Reversible, Right
Handle Design
Plymouth
Handle Material
Metal
Handle Style
Knob
Knob Shape
Round
Latch Faceplate
Drive-In, Round Corner
Locking Mechanism
Push Button
Material
Zinc
Panic Proof
Yes
Rosette Shape
Arch
Theme
Traditional
Trim Design
Camelot

Characteristics and Features

Concealed Screws
No
Function
Privacy
Handing
Left, Reversible, Right
Handle Design
Plymouth
Handle Material
Metal
Handle Style
Knob
Knob Shape
Round
Latch Faceplate
Drive-In, Round Corner
Locking Mechanism
Push Button
Material
Zinc
Panic Proof
Yes
Rosette Shape
Arch
Theme
Traditional
Trim Design
Camelot

Warranty and Product Information

ADA
No
ANSI Certification
A156.5
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Plymouth
Fire Rated
No
Manufacturer Warranty
5 Year Finish, Limited Lifetime Mechanical
Series
Camelot

Warranty and Product Information

ADA
No
ANSI Certification
A156.5
Approved for Commercial Use
No
BHMA Certification
Grade 2
Certifications
ANSI, BHMA
Collection
Plymouth
Fire Rated
No
Manufacturer Warranty
5 Year Finish, Limited Lifetime Mechanical
Series
Camelot
