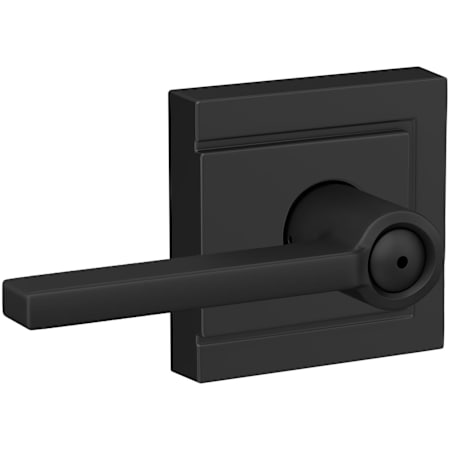

Schlage Latitude Privacy Door Lever Set with Upland Rose
Model: F40LAT622ULD|Item: bci5223820
from theLatitude Collection
$68.36
Finish: Matte Black -

23 In Stock
Finish: Matte Black -
23 In Stock
Matte Black
Function
Privacy
- Passage$60.75
- Privacy$68.36
- Single Dummy$29.53
- Keyed Entry$124.43
- Keyless Combo Pack$325.89
Privacy
Trim Design
Upland
- Addison$55.67
- Century$54.08
- Plymouth$36.99
- Collins$43.28
- Greenwich$55.67
- Greyson$55.67
- Upland$68.36
Upland
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-Details
Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of high quality materials for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Schlage's limited lifetime manufacturer warranty
- ADA compliant
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Bore Hole: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-5/8" to 2-1/4"
- Handing: Reversible Left or Right
- Handle Length: 3-15/16"
- Handle Projection: 2-1/2"
- Trim Width: 3"
- Trim Height: 3"
- Product Weight: 2.47 lbs.
- Latch Faceplate: Drive-In or Round Corner
Specifications
Key Specifications
- Backset2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
- Trim Height3 in.
- Trim Width3 in.
- Concealed ScrewsNo
- FunctionPrivacy
- HandingLeft, Reversible, Right
- Locking MechanismPush Button
- MaterialZinc
- BHMA CertificationGrade 2
Manufacturer Resources
InstallationDimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/4", 2-1/8" |
Edge Bore | 1" |
Handle Length | 3.9375 in. |
Handle Projection | 2.5 in. |
Product Weight | 2.47 lbs. |
Trim Height | 3 in. |
Trim Width | 3 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/4", 2-1/8" |
Edge Bore | 1" |
Handle Length | 3.9375 in. |
Handle Projection | 2.5 in. |
Product Weight | 2.47 lbs. |
Trim Height | 3 in. |
Trim Width | 3 in. |
Characteristics and Features
Concealed Screws | No |
Function | Privacy |
Handing | Left, Reversible, Right |
Handle Design | Latitude |
Handle Material | Metal |
Handle Style | Lever |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Square, Straight |
Locking Mechanism | Push Button |
Material | Zinc |
Rosette Shape | Square |
Theme | Contemporary |
Trim Design | Upland |
Characteristics and Features
Concealed Screws | No |
Function | Privacy |
Handing | Left, Reversible, Right |
Handle Design | Latitude |
Handle Material | Metal |
Handle Style | Lever |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Square, Straight |
Locking Mechanism | Push Button |
Material | Zinc |
Rosette Shape | Square |
Theme | Contemporary |
Trim Design | Upland |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Latitude |
Country Of Origin | Mexico |
Fire Rated | No |
Made in America | No |
Manufacturer Warranty | Limited Lifetime |
Series | F-Series |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Latitude |
Country Of Origin | Mexico |
Fire Rated | No |
Made in America | No |
Manufacturer Warranty | Limited Lifetime |
Series | F-Series |
