Schlage CS200-Series Commercial Grade 2 Interconnected Right Handed St. Annes Entry Lever Set and Full Interchangeable Core Deadbolt with Camelot Escutcheon

Interconnected Commercial Grade 2 Right Handed St. Annes Entry Lever Set and Full Interchangeable Core Deadbolt with Camelot Escutcheon from the CS200-Series

The Schlage CS200-Series grade 2 interconnected locks are the perfect combination of aesthetics and strength; and with an internal mechanism allowing the deadbolt to be released by turning the interior handle, this lock can help achieve strict life and safety code requirements. Known for accessible egress and dependable security, this lockset has heat-treated steel locking components, and independent heavy-duty lever torsion springs along with its adjustable 4 or 5.5 inch center to center installation capability. With an ANSI A156.25 rating for all 14 lever styles available, and its ADA compliance, this lock set is generally used in medium traffic areas, for a wide array of applications.

Features:

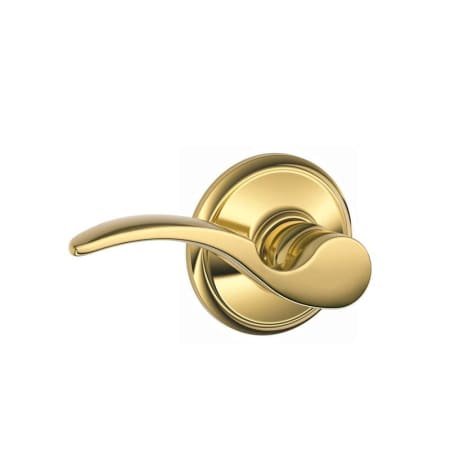

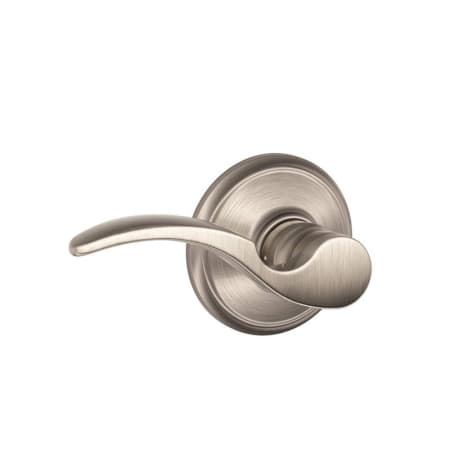

• Features St. Annes Levers with Camelot Inside Escutcheon
• For Right Handed Applications, Image May Not Accurately Depict Handing
• ANSI Certified A156.12-2005
• BHMA Grade 2 Certified
• UL Listed for 3-Hour Fire Door
• Extra Strength Derived from Heat-Treated Steel Locking Components
• Durable Heavy-Duty Lever Torsion Springs
• Versatile Choices for Face and Strike Plates
• 3 Year Limited Warranty

Single Locking: With a lever that is always free to turn, this single locking entrance set relies solely on the deadbolt for security purposes. The deadbolt is thrown and retracted on the outside with a key, and utilizes a turn knob to lock and unlock from the interior. Another feature of this function is the ability of the interior handle to simultaneously release both the dead latch and deadbolt for safe, immediate exit capabilities.

Full Size Interchangeable Core: This lockset comes with a solid brass 6-Pin cylinder full size interchangeable core.

Specifications:

• Backset: Adjustable 2-3/8 and 2-3/4 Inch
• Deadbolt: 1" Housing Diameter and 1" Throw
• Center to Center: Fits 4 and 5-1/2 Inch Door Preps
• Door Thickness: 1-3/4 to 2 Inches
• Projection: 2.5
• Lever Length: 4.875 Inches
• Cross Bore: 2-1/8 Inches
• Edge Bore: 1 Inch

Includes:

• Interior and Exterior St. Annes Lever Sets
• Interior Camelot Escutcheon
• 2-3/8" or 2-3/4" Adjustable Backset Deadbolt/Dead Latch - Part Numbers 12-340 and 16-260
• Selected Strike/Face Plates
• 2 Nickel Silver Cut Keys

Similar and Related Products:

• Same Levers with Plymouth Escutcheon: CS210RD-STA-PLY-RH
• Left Handed Version: CS210RD-STA-CAM-LH
• Same Design with 6 Pin Cylinder: CS210PD-STA-CAM-RH
• Same Design with Full Size Less Core: CS210JD-STA-CAM-RH
• Same Design with Small Format Less Core: CS210BD-STA-CAM-RH

For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage's hardware and security solutions protect and enhance the things that matter most to you.
