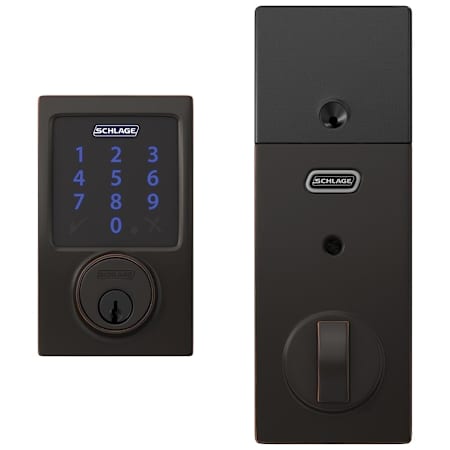

Schlage Connect Century Touchscreen Electronic Deadbolt with Built-in Alarm and Z-Wave Plus Technology
Model: BE469ZPCEN716|Item: bci2185728






Details
Smarter homes start with Schlage.
The Schlage Connect™ Smart Deadbolt delivers the latest features and compatibility with your home automation system, allowing you to control access to your home from anywhere. Featuring Z-Wave Plus technology, the Schlage Connect™ Smart Deadbolt offers extended range, better battery performance and the peace of mind of S2 enhanced encryption.
Installs easily with a screwdriver and connects quickly to your home's Z-Wave system with the push of a button.
The built-in alarm alerts you when someone attempts to tamper with the lock or significant force applied to the door.
Create up to 30 unique access codes for guests and even lock/unlock the door remotely with your smartphone.
Improved range, battery performance, and encryption elevate the Schlage Connect™ Smart Deadbolt to a whole new level of security.
Features:
- ANSI Grade 1 highest residential security
 - Smudge and fingerprint free with durable resistant touchscreen
 - Protection from lock tampering with anti-pick shield
 - Enter 4 digit code to automatically lock and unlock the motorized bolt
 - 1 Year battery life with 4 AA batteries included
 - 1 Year warranty with lifetime limited mechanical & finish warranty
 - Triple option latch includes tapered deadbolt latch with round corner, square corner and drive-in faceplates
 - Easy to install with no wiring necessary

Z-Wave Plus Technology:
- Allows for cell phone controlled locking and unlocking
 - Customize lock codes, alarms and schedules
 - Utilizes Z-Wave Plus wireless mesh networking
 - Allows for further integration with thermostats, lights, cameras and other electronics
 - Remote access requires a compatible home automation or security system. The deadbolt will still function as a keypad lock with built-in alarm without one of these systems. Please contact your Z-Wave provider to see if this product is supported.
 - Amazon Alexa Voice Service and Google Assistant require integration with a compatible smart home hub.

Specifications:
- Exterior Projection: 1"
 - Exterior Width: 3"
 - Exterior Height: 5"
 - Interior Projection: 2"
 - Interior Width: 3"
 - Interior Height: 8"
 - Product Weight: 3.8 Pounds
 - Backset: Adjustable 2-3/8" or 2-3/4"
 - Cross Bore Diameter: 2-1/8"
 - Edge Bore Diameter: 1"
 - Door Thickness: 1-3/8" to 1-3/4"
 - Cylinder: 5 Pin C-Keyway
 - Deadbolt Throw: 1 "

Dimensions and Measurements
Backset   | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore   | 2-1/8" |
Door Thickness   | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore   | 1" |
Exterior Height   | 5 in. |
Exterior Projection   | 1 in. |
Exterior Width   | 3 in. |
Interior Height   | 8 in. |
Interior Projection   | 2 in. |
Interior Width   | 3 in. |
Product Weight   | 3.8 lbs. |
Dimensions and Measurements
Backset   | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore   | 2-1/8" |
Door Thickness   | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore   | 1" |
Exterior Height   | 5 in. |
Exterior Projection   | 1 in. |
Exterior Width   | 3 in. |
Interior Height   | 8 in. |
Interior Projection   | 2 in. |
Interior Width   | 3 in. |
Product Weight   | 3.8 lbs. |
Included Components
Battery Included   | Yes |
Included Components
Battery Included   | Yes |
Characteristics and Features
App Compatibility   | Amazon Alexa, Google Assistant, Nest, Nexia, Ring, Wink, Vera |
Auto-Lock Capable   | Yes |
Battery Quantity   | 4 |
Cylinder   | 5 Pin Schlage C |
Cylinder Type   | Single Cylinder |
Device Compatibility   | Android, Smartphone, Apple iOS Device |
Function   | Electronic Keyless Entry, Keyless Entry |
Handing   | Left, Reversible, Right |
Input Type   | Touchscreen, Keypad |
Keyway   | C |
Latch Faceplate   | Drive-In, Round Corner, Square Corner |
Lit Keypad   | Yes |
Material   | Zinc |
Motorized Deadbolt   | Yes |
Number of Codes   | 30 |
Number of Keys   | 1 |
Remote Access   | Yes |
Rosette Shape   | Rectangle |
Smart Home   | Yes |
Temporary Access   | Yes |
Theme   | Modern |
Trim Design   | Century |
Usage Monitoring   | Yes |
Wireless Communication   | Z-Wave |
Characteristics and Features
App Compatibility   | Amazon Alexa, Google Assistant, Nest, Nexia, Ring, Wink, Vera |
Auto-Lock Capable   | Yes |
Battery Quantity   | 4 |
Cylinder   | 5 Pin Schlage C |
Cylinder Type   | Single Cylinder |
Device Compatibility   | Android, Smartphone, Apple iOS Device |
Function   | Electronic Keyless Entry, Keyless Entry |
Handing   | Left, Reversible, Right |
Input Type   | Touchscreen, Keypad |
Keyway   | C |
Latch Faceplate   | Drive-In, Round Corner, Square Corner |
Lit Keypad   | Yes |
Material   | Zinc |
Motorized Deadbolt   | Yes |
Number of Codes   | 30 |
Number of Keys   | 1 |
Remote Access   | Yes |
Rosette Shape   | Rectangle |
Smart Home   | Yes |
Temporary Access   | Yes |
Theme   | Modern |
Trim Design   | Century |
Usage Monitoring   | Yes |
Wireless Communication   | Z-Wave |
Manufacturer Technology
Built-In Alarm   | Yes |
SmartKey   | No |
Manufacturer Technology
Built-In Alarm   | Yes |
SmartKey   | No |
Electrical and Operational Information
Battery Size   | AA |
Operating Temperature (Max)   | -31 °F |
Operating Temperature (Min)   | 150.8 °F |
Power Source   | Battery |
Electrical and Operational Information
Battery Size   | AA |
Operating Temperature (Max)   | -31 °F |
Operating Temperature (Min)   | 150.8 °F |
Power Source   | Battery |
Warranty and Product Information
ADA   | No |
ANSI Certification   | A156.36 |
Approved for Commercial Use   | No |
BHMA Certification   | Grade 1 |
Certifications   | ANSI |
Collection   | Century, Connect |
Country Of Origin   | Mexico |
Fire Rated   | No |
Manufacturer Warranty   | 1 Year Electronics, Limited Lifetime Finish, Limited Lifetime Mechanical |
Series   | Connect |
Warranty and Product Information
ADA   | No |
ANSI Certification   | A156.36 |
Approved for Commercial Use   | No |
BHMA Certification   | Grade 1 |
Certifications   | ANSI |
Collection   | Century, Connect |
Country Of Origin   | Mexico |
Fire Rated   | No |
Manufacturer Warranty   | 1 Year Electronics, Limited Lifetime Finish, Limited Lifetime Mechanical |
Series   | Connect |
