Schlage One Sided Deadbolt with Occupied Indicator

The Schlage B572 indicator deadbolt is versatile and economical Grade 1 deadbolt for commercial and heavy duty residential applications. With it's ADA compliant thumbturn and two-sided indicator messages, it is a perfect deadbolt for a public restroom, storage/utility room or other spaces where privacy is needed.

Features:

• Patented, 180-degree, high-visibility, indication window assures users of locked or unlocked status

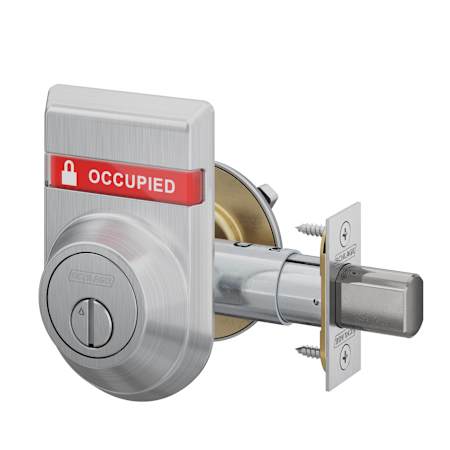

• Exterior reads 'OCCUPIED'

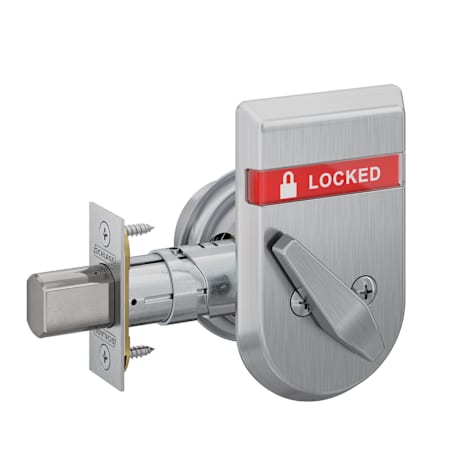

• Interior reads 'LOCKED'
• High contrast, red and white messaging assures readability to all users, even the colorblind
• ADA compliant thumbturn
• Security features include a high-density polycarbonate window form-fitted to the escutcheon cavity so it is resistant to prying attack
• Dust box acts as a strike reinforcer with three 3” screws for greater protection against kick-in attacks
• American Made

Specifications:

• Fits 2-1/8" (55mm) diameter bore hole prep standard
• Backset: Adjustable 2-3/8" or 2-3/4"
• Door Thickness: 1-3/8" to 1-3/4" Standard
• ANSI Grade 2 strength
• Dead Bolt: 1" throw with saw-resistant hardened steel insert
• Square Corner Latch Faceplate
• Warranty: Commercial - Three-year Limited, Residential - Full Lifetime Mechanical

Old Model: B571
