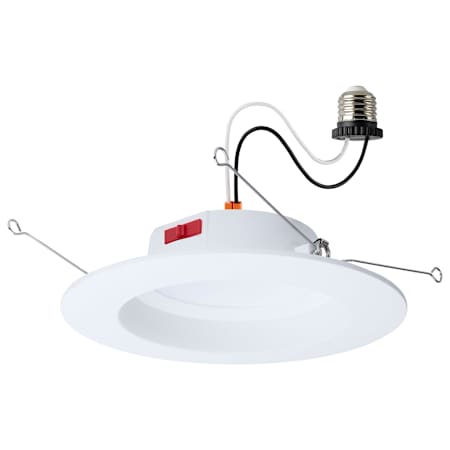

Satco Lighting ColorQuick 6" Integrated LED Open Recessed Trim and New Construction / Remodel Housing- Airtight
Model: S12602|Item: bci4954747
Details
SATCO|NUVO's S12602 5/6-inch round, 7.5W, Performer Series LED Retrofit Downlight combines effortless installation with a sleek, functional design. Its smooth regress baffle minimizes glare, while the integrated on-unit switch allows easy selection from 5 color temperatures. Equipped with an E26 adapter, it supports both remodel and new construction applications. Rated for wet locations and featuring non-conductive dead-front trim, this downlight is perfect for showers and other damp areas. With a high CRI of 90, it provides bright, energy-efficient illumination with exceptional color accuracy, enhancing any environment.
Features:
- 5 CCT Selectable
- Smooth Baffle for Reduced Glare
- Non-Conductive "Dead-Front" Trim
- E26 Adapter Included
- Housing is designed for use with remodels or new construction
- Housing is airtight
- Can be converted to be used with pre-existing recessed housings
- Constructed from plastic
- Comes with plastic shade
- Integrated LED lighting
- Capable of being dimmed
- ETL rated for wet locations
- Energy Star certified
- Title 20 and Title 24 compliant
- Covered by Satco's 5 year limited manufacturer warranty
Dimensions:
- Height: 1-13/16"
- Width: 7-3/8"
- Depth: 7-3/8"
- Trim Size: 6"
- Product Weight: 0.39 lbs
- Aperture: 5-3/8"
- Cutout Size: 5-3/8"
Electrical Specifications:
- Wattage: 7.5 watts
- Number of Light Source(s): 1
- Lumens: 650
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
- Color Rendering Index: 90 CRI
- Average Hours: 50000
Dimensions and Measurements
Aperture Size | 5.36 in. |
Beam Spread | 90 Degrees |
Cutout Size | 5.36 in. |
Depth | 7.36 in. |
Height | 1.84 in. |
Product Weight | 0.39 lbs. |
Trim Size | 6 in. |
Width | 7.36 in. |
Dimensions and Measurements
Aperture Size | 5.36 in. |
Beam Spread | 90 Degrees |
Cutout Size | 5.36 in. |
Depth | 7.36 in. |
Height | 1.84 in. |
Product Weight | 0.39 lbs. |
Trim Size | 6 in. |
Width | 7.36 in. |
Included Components
Shade | Yes |
Included Components
Shade | Yes |
Characteristics and Features
Adjustable Color Temperature | Yes |
Airtight | Yes |
Bulb Base | Integrated LED |
Bulk Pack | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
Dimmable | Yes |
Housing Type | New Construction Housing, Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Plastic |
Number of Light Source(s) | 1 |
Replaceable LED Module | No |
Retrofit | Yes |
Shade Color | Frosted |
Shade Material | Plastic |
Shade Shape | Round |
Sloped Ceiling Compatible | No |
Smart Home | No |
Trim Style | Open Trims |
Characteristics and Features
Adjustable Color Temperature | Yes |
Airtight | Yes |
Bulb Base | Integrated LED |
Bulk Pack | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
Dimmable | Yes |
Housing Type | New Construction Housing, Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Plastic |
Number of Light Source(s) | 1 |
Replaceable LED Module | No |
Retrofit | Yes |
Shade Color | Frosted |
Shade Material | Plastic |
Shade Shape | Round |
Sloped Ceiling Compatible | No |
Smart Home | No |
Trim Style | Open Trims |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 650 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 7.5 |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 650 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 7.5 |
Warranty and Product Information
Certifications | ETL |
Collection | ColorQuick |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
Certifications | ETL |
Collection | ColorQuick |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
Title 20 Compliant | Yes |
Title 24 | Yes |
