Satco Lighting ColorQuick 4" Integrated LED Open Recessed Trim and New Construction / Remodel Housing- Airtight
Model: S11647|Item: bci4954753
Details
SATCO|NUVO's LED CCT Selectable 4 inch High Lumen Retrofit Downlight, S11647, will elevate the lighting in any space. Designed with impeccable 90 CRI color rendering, you can make your space brighter while saving energy with this 1,100 high lumen LED downlight. This retrofit includes an E26 adapter making it the perfect upgrade to replace existing screw base lamps in downlight applications or purchase an optional GU24 socket adapter for use with pin-based fixtures. Featuring a smooth baffle design and your choice of five CCT options at installation, this retrofit downlight will illuminate all of your spaces with ease and elegance.
Features:

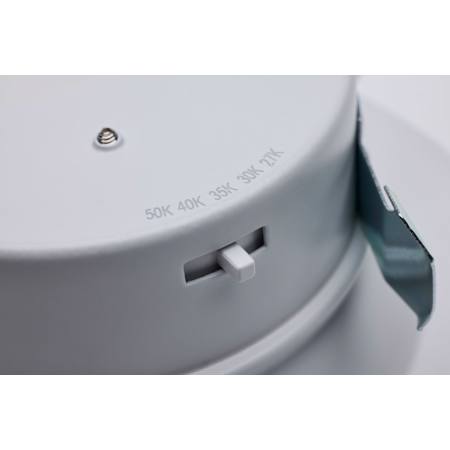

- CCT Selectable
- High Lumen Output 90 CRI for High Quality Lighting

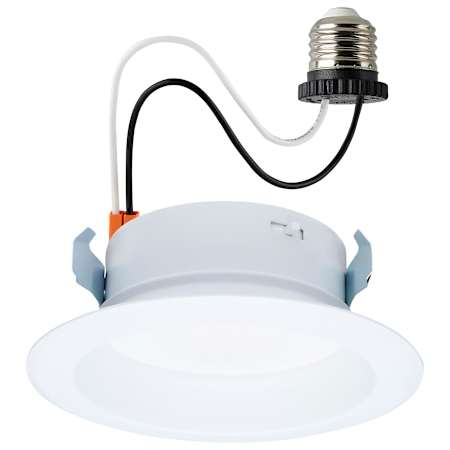

- E26 Adapter Included
- Housing is designed for use with remodels or new construction
- Housing is airtight
- Can be converted to be used with pre-existing recessed housings
- Constructed from aluminum
- Comes with polycarbonate shade
- Integrated LED lighting
- Capable of being dimmed
- UL rated for wet locations
- Energy Star certified
- Title 20 and Title 24 compliant
- Covered by Satco's 5 year limited manufacturer warranty
Dimensions:
- Height: 1-7/8"
- Width: 5-1/8"
- Depth: 5-1/8"
- Trim Size: 4"
- Product Weight: 0.27 lbs
- Aperture: 4-1/16"
- Cutout Size: 4-1/16"
Electrical Specifications:
- Wattage: 10 watts
- Number of Light Source(s): 1
- Lumens: 820
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
- Color Rendering Index: 90 CRI
- Average Hours: 50000
Dimensions and Measurements
Aperture Size | 4.06 in. |
Beam Spread | 100 Degrees |
Cutout Size | 4.06 in. |
Depth | 5.12 in. |
Height | 1.86 in. |
Product Weight | 0.27 lbs. |
Trim Size | 4 in. |
Width | 5.12 in. |
Dimensions and Measurements
Aperture Size | 4.06 in. |
Beam Spread | 100 Degrees |
Cutout Size | 4.06 in. |
Depth | 5.12 in. |
Height | 1.86 in. |
Product Weight | 0.27 lbs. |
Trim Size | 4 in. |
Width | 5.12 in. |
Included Components
Shade | Yes |
Included Components
Shade | Yes |
Characteristics and Features
Adjustable Color Temperature | Yes |
Airtight | Yes |
Bulb Base | Integrated LED |
Bulk Pack | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
Dimmable | Yes |
Housing Type | New Construction Housing, Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Light Source(s) | 1 |
Replaceable LED Module | No |
Retrofit | Yes |
Shade Color | Frosted |
Shade Material | Polycarbonate |
Shade Shape | Round |
Sloped Ceiling Compatible | No |
Smart Home | No |
Trim Style | Open Trims |
Characteristics and Features
Adjustable Color Temperature | Yes |
Airtight | Yes |
Bulb Base | Integrated LED |
Bulk Pack | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
Dimmable | Yes |
Housing Type | New Construction Housing, Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Light Source(s) | 1 |
Replaceable LED Module | No |
Retrofit | Yes |
Shade Color | Frosted |
Shade Material | Polycarbonate |
Shade Shape | Round |
Sloped Ceiling Compatible | No |
Smart Home | No |
Trim Style | Open Trims |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 820 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 10 |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 820 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 10 |
Warranty and Product Information
Certifications | UL |
Collection | ColorQuick |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
Certifications | UL |
Collection | ColorQuick |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
Title 20 Compliant | Yes |
Title 24 | Yes |
