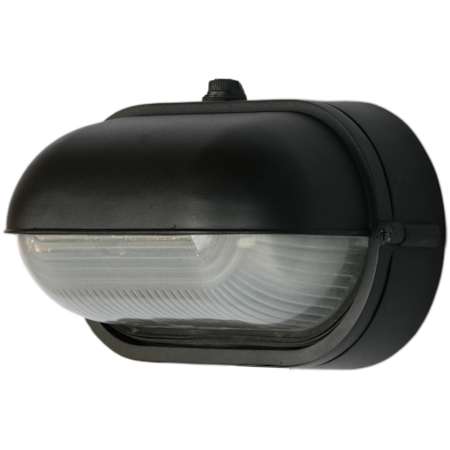

RP Lighting and Fans Bulkhead 8" Wide ADA Oval Outdoor Eyelid Wall Sconce
Model: 8402BK-8-PC|Item: bci5291557
Bulkhead Shape
Width
Details
The 8” Oval Eyelid Bulkhead offers a modern architectural appearance for commercial and residential environments. This fixture is constructed from rugged die-cast aluminum housing and a UV-resistant coating, delivering long-lasting performance and corrosion resistance. Frosted glass diffuser delivers soft, even illumination, while the eyelid design directs light downward to minimize glare and light trespass. Equipped with a universal E26 medium base and an integrated dusk-to-dawn photocell with an included override cover, this ETL-listed, wet-location-rated fixture is designed to operate in temperatures from -4°F to 113°F (-20°C to 45°C). Ideal for building exteriors, walkways, corridors, and multi-family properties where controlled downward lighting and reduced glare are needed.
Features:
- Die-cast aluminum housing
- UV-resistant coating
- Eyelid Shades
- Inner: sandblasted glass
- Outer: clear glass
- Requires (1) medium (E26) 40 watt bulb (not included)
- ADA Compliant
- Rated for installation in wet locations
Dimensions:
- Height: 6-3/4"
- Width: 11"
- Product Weight: 2.95 lbs
- Shade Height: 3-9/16"
- Shade Width: 5-13/16"
- Shade Depth: 9-15/16"
- Backplate Height: 6-5/16"
- Backplate Width: 11"
Electrical Specifications:
- Max Wattage: 40 watts
- Number of Bulbs: 1
- Watts Per Bulb: 40 watts
- Bulb Base: Medium (E26)
- Bulb Shape: A19
- Bulb Type: Incandescent
- Voltage: 120 volts
- Bulb Included: No
Specifications
Key Specifications
- Height6.75 in.
- Width11 in.
- Location RatingWet Location
Dimensions and Measurements
Backplate Height | 6.3 in. |
Backplate Width | 10.98 in. |
Height | 6.75 in. |
Nominal Height | 7 in. |
Product Weight | 2.95 lbs. |
Shade Depth | 9.92 in. |
Shade Height | 3.58 in. |
Shade Width | 5.83 in. |
Width | 11 in. |
Dimensions and Measurements
Backplate Height | 6.3 in. |
Backplate Width | 10.98 in. |
Height | 6.75 in. |
Nominal Height | 7 in. |
Product Weight | 2.95 lbs. |
Shade Depth | 9.92 in. |
Shade Height | 3.58 in. |
Shade Width | 5.83 in. |
Width | 11 in. |
Included Components
Battery Included | No |
Bulb Included | No |
Motion Sensor | No |
Shade | Yes |
Swing Arm | No |
Included Components
Battery Included | No |
Bulb Included | No |
Motion Sensor | No |
Shade | Yes |
Swing Arm | No |
Characteristics and Features
Bulb Base | Medium (E26) |
Bulb Shape | A19 |
Bulb Type | Incandescent |
Bulb Visible | No |
Dimmable | No |
Full Backplate | Yes |
LED | No |
Light Direction | Ambient Lighting |
Material | Aluminum, Glass |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Photocell | Yes |
Reversible Mounting | No |
Sconce Type | Flush Mount |
Shade Color | Clear |
Shade Shape | Oval |
Smart Home | No |
Characteristics and Features
Bulb Base | Medium (E26) |
Bulb Shape | A19 |
Bulb Type | Incandescent |
Bulb Visible | No |
Dimmable | No |
Full Backplate | Yes |
LED | No |
Light Direction | Ambient Lighting |
Material | Aluminum, Glass |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Photocell | Yes |
Reversible Mounting | No |
Sconce Type | Flush Mount |
Shade Color | Clear |
Shade Shape | Oval |
Smart Home | No |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120 |
Wattage | 40 |
Watts Per Bulb | 40 |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120 |
Wattage | 40 |
Watts Per Bulb | 40 |
Warranty and Product Information
ADA | No |
Collection | Bulk Head Oval |
Country Of Origin | China |
Dark Sky | No |
Energy Star | No |
Location Rating | Wet Location |
Made in America | No |
Warranty and Product Information
ADA | No |
Collection | Bulk Head Oval |
Country Of Origin | China |
Dark Sky | No |
Energy Star | No |
Location Rating | Wet Location |
Made in America | No |
