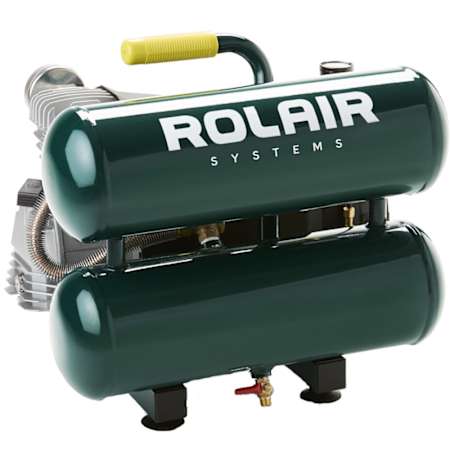

Rolair Systems 2 HP 4 Gal 125 Max PSI Single-Stage Portable Electric (115 Volt) Reciprocating Air Compressor
Model: VT20ST|Item: bci5120866
Details
Product Information:
- Low Speed 2 HP Motor
- Runs at 1700 RPM, much quieter than other compressors
- Cooler running so it lasts longer
- Cast Iron Cylinder
- Durable & reliable construction includes stainless reed valves
- Industrial grade ball bearings for greater durability
- Intake filter silencer helps compressor run quietly
- 100% Duty Cycle: S1-rated for continuous duty; low-amp draw for demanding work
- 4.2 Gallon Air Reserve
- Two 2-gallon tanks take 1.25 minutes to fill; .21 to recover
- Rated to 125 PSI maximum
- 4.8 CFM At 40 PSI; 4.2 At 90 PSI: Powers many hand tools; inflates tires & sports balls
- Weighs 68 Pounds: Easy to transport & store
- Draws 13.5 Amps: Works on household 115V single phase outlets
- Ball Valve Tank Drain: Simplifies maintenance to help prevent rust
Specifications:
- Fuel Type: Electric
- Height: 17"
- Width: 16"
- Length: 19"
- Product Weight: 68 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 4
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 4
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Horsepower: 2 HP
- Amperage: 12.3A
- dB Rating: 74
- Voltage: 115V
- Voltage: 115V
Dimensions and Measurements
CFM | 4.2 |
Height | 17 in. |
Length | 19 in. |
Product Weight | 68 lbs. |
Width | 16 in. |
Dimensions and Measurements
CFM | 4.2 |
Height | 17 in. |
Length | 19 in. |
Product Weight | 68 lbs. |
Width | 16 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 4.8 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 4 |
Tank Type | Twin-Stack |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 4.8 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 4 |
Tank Type | Twin-Stack |
Electrical and Operational Information
Amperage | 12.3 |
Decibels | 74 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Electrical and Operational Information
Amperage | 12.3 |
Decibels | 74 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
