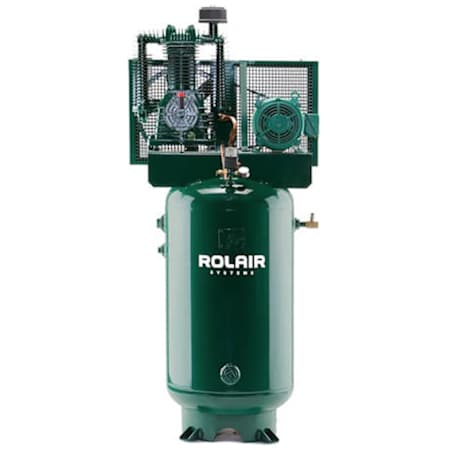

Rolair Systems 7.5 HP 80 Gal 175 Max PSI 24.8 CFM Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor
Model: V75180K30B-19|Item: bci5120817
Details
Product Information:
- 7.5 HP Air Compressor Runs On 230V 1-Phase Power: Easy to wire into your shop or garage
- Two Stage, 1250 RPM Splash Lubricated Pump
- Two stage power for high demand applications
- Cast iron cylinders for durability
- Aluminum head & crankcase for faster heat dissipation
- Swedish Lammelar Reed Valves: High quality for best performance & reliability
- Start/Stop Operation: Pressure switch can be set for 145-175 PSI settings
- Automatic Unloading Device: Load-less starts save wear & tear on your unit
- Easy-To-Read Pressure Gauge: Marked 0-300 PSI in 5lb. graduations
- Totally Enclosed Multiple V-Belt Steel Belt Guard: Protects the belt drive, and you
- Intake Filter/Silencer: Replaceable element reduces noise
- Magnetic Starter Included On This Model: No need to buy an additional starter
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 77"
- Width: 24"
- Length: 30"
- Product Weight: 530 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 25
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 24.8 |
Height | 77 in. |
Length | 30 in. |
Product Weight | 530 lbs. |
Width | 24 in. |
Dimensions and Measurements
CFM | 24.8 |
Height | 77 in. |
Length | 30 in. |
Product Weight | 530 lbs. |
Width | 24 in. |
Characteristics and Features
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
