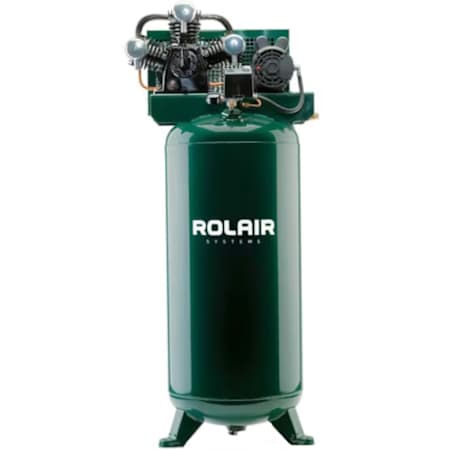

Rolair Systems 5 HP 60 Gal 150 Max PSI Single-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor
Model: V5160PT03X|Item: bci5120814
Details
Product Information:
- 5-HP 230V Single Phase Air Compressor: Easy to wire into your shop or garage
- Single Stage, 1200 RPM Splash Lubricated Pump
- 3 cast iron cylinders for durability
- Aluminum head & crankcase for faster heat dissipation
- Low RPMs ensure long life & trouble free performance
- Open Drip Proof S1 Rated Motor
- Rated at 3450 RPM and ODP runs cooler to prevent overheating
- Intake Filter/Silencer with replaceable element reduces noise
- Swedish Lammelar Reed Valves: High quality for best performance & reliability
- Start/Stop Operation: Pressure switch can be set for 110-135 PSI settings
- Automatic Unloading Device: Load-less starts save wear & tear on your unit
- Easy-To-Read Pressure Gauge: Marked 0-200 PSI in 5lb. graduations
- Totally Enclosed Steel Belt Guard: Protects the belt drive, and you
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 70"
- Width: 20"
- Length: 24"
- Product Weight: 298 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 16
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 16.4 |
Height | 70 in. |
Length | 24 in. |
Product Weight | 298 lbs. |
Width | 20 in. |
Dimensions and Measurements
CFM | 16.4 |
Height | 70 in. |
Length | 24 in. |
Product Weight | 298 lbs. |
Width | 20 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
