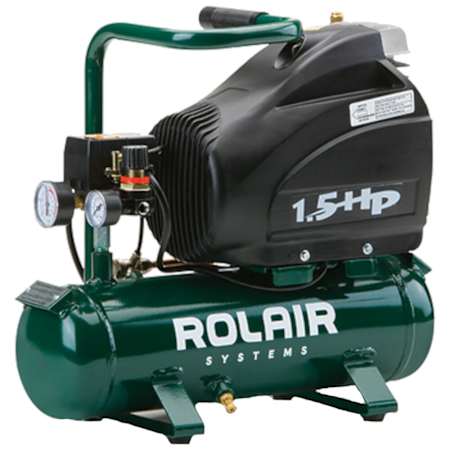

Rolair Systems 1.5 HP 2.15 Gal 125 Max PSI Single-Stage Portable Electric (115 Volt) Reciprocating Air Compressor
Model: FC1500HS3|Item: bci5120476
Details
Product Information:
- Industrial Grade Splash Lubricated Air Compressor
- Low 79dBa allows for quiet operation when working
- Perfect for powering air nailers, brad nailers to install trim, complete furniture upholstery projects and more
- Heavy-Duty 1.5 HP 3400 RPM Motor
- 115V motor stands up to frequent use with low amp draw
- Ball bearings provide greater durability with high demand
- Single Stage Cast-Iron Cylinder Pump
- Filter, silencer and splash lube help unit run smooth and quiet
- Durable stainless reed valves & cast iron cylinder ensures longer life
- Overload Protection With Manual Reset
- Protects the air compressor, lets you get back to work quickly
- Includes pressure switch with On/Off lever for maximum protection
- Safety relief valve controls and limits the pressure build-up in the system
- Powerful 95-125 PSI Operating Pressure
- Puts out 4.24 CFM @ 40 PSI; 4.0 CFM @ 90 PSI
- Provides faster recovery time and more CFM production
- 2.15-Gallon Air Tank
- Lightweight & compact design is easy to carry and store
- Quick-opening tank drain for easy maintenance
- Built-In Regulator With Gauge
- Tank & tool pressure gauges can be checked at a glance
- Adjust the airline pressure accurately for peak tool performance
- Factory Tested: 6 oz. crankcase is pre-filled with oil; arrives ready to work
Specifications:
- Fuel Type: Electric
- Height: 18"
- Width: 9"
- Length: 20"
- Product Weight: 39 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 2.15
Pump Specifications:
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 4
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Horsepower: 1.5 HP
- Amperage: 13.5A
- dB Rating: 79
- Voltage: 115V
- Voltage: 115V
Dimensions and Measurements
CFM | 4 |
Height | 18 in. |
Length | 20 in. |
Product Weight | 39 lbs. |
Width | 9 in. |
Dimensions and Measurements
CFM | 4 |
Height | 18 in. |
Length | 20 in. |
Product Weight | 39 lbs. |
Width | 9 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 4.24 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 2.15 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 4.24 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 2.15 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 13.5 |
Decibels | 79 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 1.5 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Electrical and Operational Information
Amperage | 13.5 |
Decibels | 79 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 1.5 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
