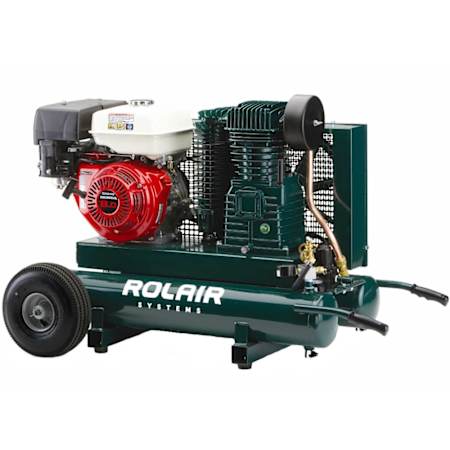

Rolair Systems 9 HP 9 Gal 150 Max PSI Two-Stage Portable Gas Reciprocating Air Compressor
Model: 7722HK28|Item: bci5120847
Details
Product Information:
- 9 HP Honda Commercial Grade GX270 Engine
- Quiet , reliable, & easy to start
- Low oil shutdown protects the engine
- Automatic Idle Control: Provides fuel economy & long service life
- Heavy Duty 2-Stage Pump
- Cast-iron twin cylinders get the job done
- Hardened steel reed valve plates are rugged & dependable
- Multi-Finned 15 Inch Flywheel & Air-Cooled Aftercooler: Pump runs cooler & lasts longer
- Oil Sight Gauge: Easily maintain the proper oil level
- Totally Enclosed Steel Belt Guard
- Protects during transport and use
- Schmidt belt tightening device for easy maintenance
- Pressure Gauge: Marked 0-300 in 5 pound graduations for accurate use
- Dual Wheels: Balance the load for easier manuverability
- Limited Manufaturer Warranty: 1-yr warranty on unit and 3-yr on Honda engine
Specifications:
- Fuel Type: Gas
- Height: 30"
- Width: 28"
- Length: 46"
- Product Weight: 276 lbs
- Warranty: 1 Year Residential, 3 Year Commercial Engine, and 3 Year Residential Engine
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 9
Pump Specifications:
- After Cooler Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 16
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- Honda GX
- Horsepower: 9 HP
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 16.2 |
Height | 30 in. |
Length | 46 in. |
Product Weight | 276 lbs. |
Width | 28 in. |
Dimensions and Measurements
CFM | 16.2 |
Height | 30 in. |
Length | 46 in. |
Product Weight | 276 lbs. |
Width | 28 in. |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 9 |
Tank Type | Wheelbarrow |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 9 |
Tank Type | Wheelbarrow |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Two-Stage |
Starting System | Recoil Start |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Two-Stage |
Starting System | Recoil Start |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential, 3 Year Commercial Engine, 3 Year Residential Engine |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential, 3 Year Commercial Engine, 3 Year Residential Engine |
