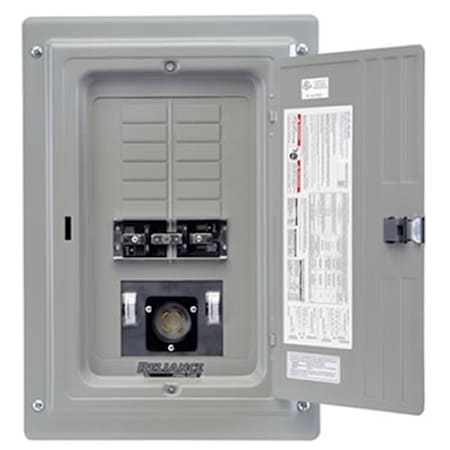

Reliance Controls 100-Amp (120 / 240V) Single-Phase Indoor Transfer Panel with 50-Amp Power Inlet
Model: TRC1005A|Item: bci5177879
$688.50
20 In Stock
Details
Features:
- Reliance Panel/Link
- Combines a circuit panel and a transfer switch together
- Perfect for new construction and/or renovation
- Plug generator cord into panel to power circuits
- Built-in wattage meter helps you manage load
Overview:
- Product Weight: 27 lbs
- Width: 14-1/2"
- Height: 4"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 1
- Max Generator Input: 50A
- Max Utility Input: 100A
- Enclosure Material: NEMA 1R
Product Assurance:
- Certifications: UL
- Warranty: 1 Year
Dimensions and Measurements
Depth | 4 in. |
Height | 4 in. |
Length | 21 in. |
Product Weight | 27 lbs. |
Width | 14.5 in. |
Dimensions and Measurements
Depth | 4 in. |
Height | 4 in. |
Length | 21 in. |
Product Weight | 27 lbs. |
Width | 14.5 in. |
Characteristics and Features
Enclosure Material | NEMA 1R |
Number of Breakers | 12 |
Characteristics and Features
Enclosure Material | NEMA 1R |
Number of Breakers | 12 |
Electrical and Operational Information
Amperage | 50 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 50 |
Max Utility Input | 100 |
Plug Type | (1) CS6364/5 - 50-Amp Twistlock |
Running Wattage | 12500 |
Voltage | 120, 240 |
Wattage | 12500 |
Electrical and Operational Information
Amperage | 50 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 50 |
Max Utility Input | 100 |
Plug Type | (1) CS6364/5 - 50-Amp Twistlock |
Running Wattage | 12500 |
Voltage | 120, 240 |
Wattage | 12500 |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
Certifications | UL |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
Certifications | UL |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
