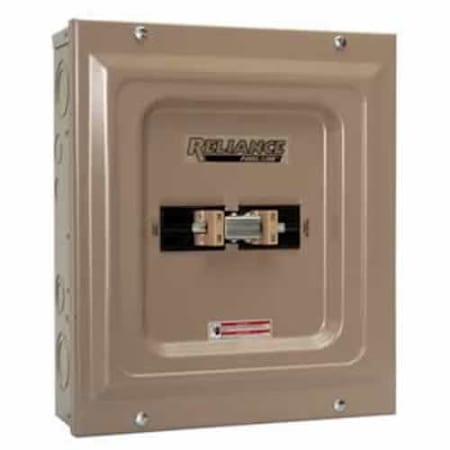

Reliance Controls 100-Amp (120 / 240V) Single-Phase Indoor Transfer Panel
Model: TCA1006D|Item: bci5177894
$521.00
32 In Stock
Details
Features:
- Reliance Panel/Link:
- Perfect for new construction and/or renovation
- Hardwire to your generator or power inlet box
- Use as a main panel for a single load or to feed a sub-panel
Overview:
- Product Weight: 12 lbs
- Width: 11-1/2"
- Height: 4"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 1
- Max Generator Input: 60A
- Max Utility Input: 100A
- Enclosure Material: NEMA 1R
Product Assurance:
- Certifications: UL
- Warranty: 2 Year
Dimensions and Measurements
Depth | 3.5 in. |
Height | 4 in. |
Length | 13.25 in. |
Product Weight | 12 lbs. |
Width | 11.5 in. |
Dimensions and Measurements
Depth | 3.5 in. |
Height | 4 in. |
Length | 13.25 in. |
Product Weight | 12 lbs. |
Width | 11.5 in. |
Characteristics and Features
Enclosure Material | NEMA 1R |
Characteristics and Features
Enclosure Material | NEMA 1R |
Electrical and Operational Information
Amperage | 100 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 60 |
Max Utility Input | 100 |
Running Wattage | 15000 |
Voltage | 120, 240 |
Wattage | 15000 |
Electrical and Operational Information
Amperage | 100 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 60 |
Max Utility Input | 100 |
Running Wattage | 15000 |
Voltage | 120, 240 |
Wattage | 15000 |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
Certifications | UL |
Made in America | Yes |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
Certifications | UL |
Made in America | Yes |
Manufacturer Warranty | 2 Year |
