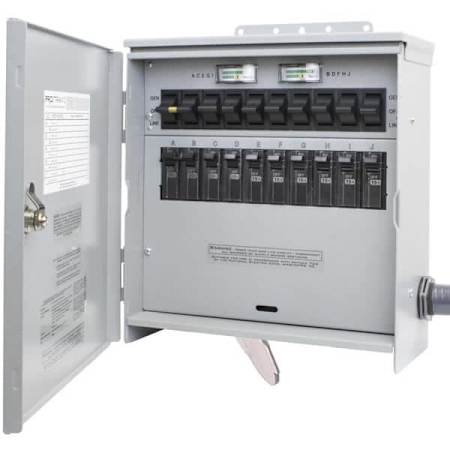

Reliance Controls Pro/Tran 2 50-Amp (120 / 240V) Single-Phase Outdoor Select Circuit Manual Transfer Switch with 10-Circuit Load Center / Wattmeter / Inlet

Features:

Pro/Tran2 50A 10-Circuit 120/240V Outdoor Manual Transfer Switch

• The next generation of Loadside manual transfer switches

Non-Defeatable (Break-Before-Make) Double-Throw Switch

• Eliminates dangerous back feeds and electrical overloads

10 Total Circuits (1" Interchangeable Style)

• (1)20A 2-pole, (2) 20A 1-pole and (6) 15A 1-pole

NEW Color-Coded Built-In Analog Watt meters

• Helps you balance and manage generator load

Factory Installed 50-Amp (CS6364) Power Inlet with Flip-Lid

• Easily connect your generator cord on bottom of switch

NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation

• Gasketed design, provides liquid tight protection in all seasons

• Key lockable door prevents tampering and unauthorized use

16" Flexible, Non-Metallic Liquid-Tight Conduit (1") with Fittings

• (5) Combination 1/2" and 3/4" knockouts for easier installation

• Factory-marked, color-coded wires simplifies installation

Safety and Certifications

• Certified for use by Underwriter Laboratories to UL Standard 1008

• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

5-Year Limited Warranty

Overview:

• Product Weight: 18 lbs
• Width: 12"
• Height: 5"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 50A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
