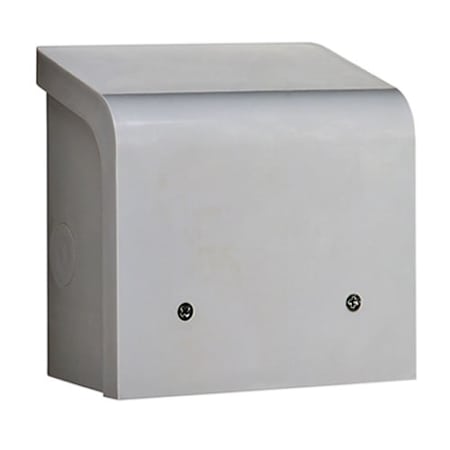

Reliance Controls 20-Amp (4-Prong) Power Inlet Box (Non-Metallic)
Model: PBN20|Item: bci5177757
$93.00
44 In Stock
Details
Features:
Raintight and Bug Proof
- Easy access flanged cover
POP-FAST3/4 Inch Knock-out Design
- Fast installation
Slide-Out Base
- 360 degree rotation for quick terminal connections
- Large 103 cu/in interior area for heavy duty wiring
Nema 3R Enclosure
- Indoor and outdoor rated
- High impact construction
UL Listed
- UV stabilized ABS construction
Dimensions and Measurements
Height | 4.375 in. |
Length | 6.25 in. |
Product Weight | 2.5 lbs. |
Width | 6.25 in. |
Dimensions and Measurements
Height | 4.375 in. |
Length | 6.25 in. |
Product Weight | 2.5 lbs. |
Width | 6.25 in. |
Characteristics and Features
Enclosure Material | NEMA 3R |
Characteristics and Features
Enclosure Material | NEMA 3R |
Electrical and Operational Information
Amperage | 20 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 20 |
Max Utility Input | 20 |
Running Wattage | 7500 |
Voltage | 120, 240 |
Wattage | 7500 |
Electrical and Operational Information
Amperage | 20 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 20 |
Max Utility Input | 20 |
Running Wattage | 7500 |
Voltage | 120, 240 |
Wattage | 7500 |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 2 Year |
