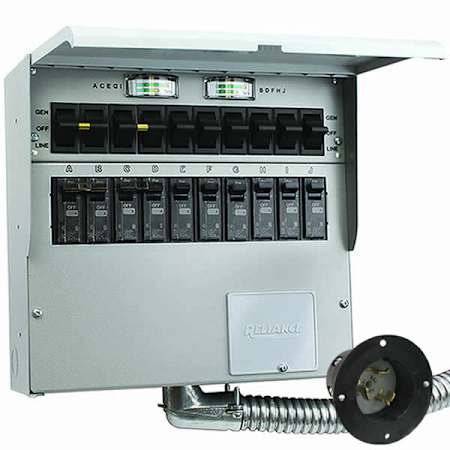

Reliance Controls Pro/Tran 2 50-Amp (120 / 240V) Single-Phase Indoor Select Circuit Manual Transfer Switch with 10-Circuit Load Center / Wattmeter / Inlet

Features:

Pro/Tran2 50-Amp 10-Circuit 120/240V Manual Transfer Switch

• The next generation of Loadside manual transfer switches

(10) Total Circuits (1" Interchangeable Style)

• (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole

Safest Way to Distribute Power

• Eliminates dangerous back feeds and electrical overloads

• Allows hardwiring OR plug-in connection via power inlet (included)

Versatile Connection

NEW Color-Coded Built-In Wattage Meter

• Helps you balance and manager generator load

Hinged, Non-Metallic Cover

• Protects toggle switches/breakers and provides a finished appearance

Powder-Coated Steel Cabinet For Indoor Installation

• 18" Flexible conduit with all factory wires clearly marked/colored

• (6) Combination 1/2" and 3/4" knockouts for easier installation

• Easily re-configured in the field for multiple 2-pole circuits

Safety and Certifications

• Certified for use by Underwriter Laboratories to UL Standard 1008

• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

5- Year Limited Warranty

Overview:

• Product Weight: 20 lbs
• Width: 11-3/4"
• Height: 4-1/2"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 50A
• Enclosure Material: NEMA 1R

Product Assurance:

• Certifications: UL
• Warranty: 2 Year
