Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump with Brass Impeller N/A
Alternate Image
Alternate Image
Alternate Image
Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump with Brass Impeller N/A
Alternate Image
Alternate Image
Alternate Image

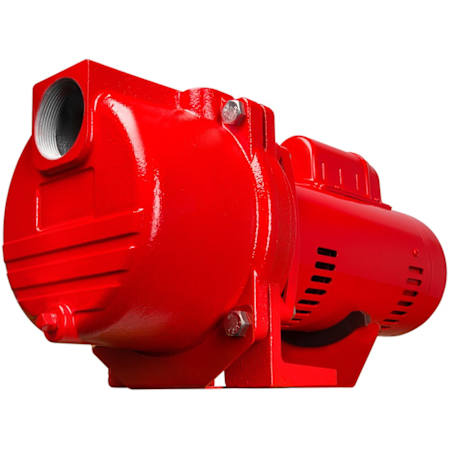

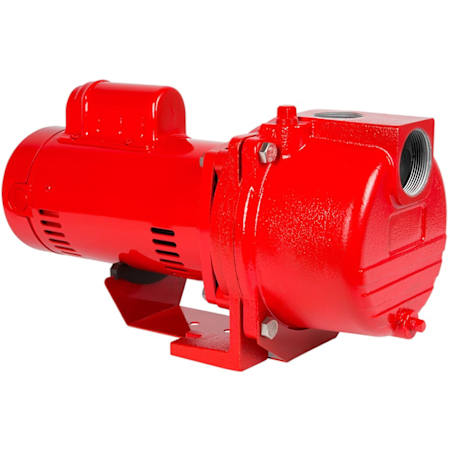

Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump with Brass Impeller

Model: 97101502
|
Item: bci5172186

$580.66
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Product Information:

  • 1-1/2 HP Lawn Sprinkler Pump
    • For use in underground or above ground lawn sprinkling systems
    • Also for garden irrigation, boosting household water pressure
    • Can be used for recirculation of large volumes of water

  • Heavy-Duty Cast Iron Construction with Brass Impeller: Designed for years of service and reliability

  • 115/230 Volt Heavy-Duty Motor: Voltage selector for simple connection to existing power source

  • Self-Priming Design: After initial fill, no additional priming required

  • Engineered Pump Housing and Hydraulics: For high performance, efficiency and quiet operation

  • Additional Specs
    • 2" NPT Intake / 1-1/2" NPT Discharge
    • 18.6 A @ 115 V
    • 9.3 A @ 230 V

  • 2-Year Warranty

Additional Red Lion Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
71
Inlet Diameter
2 in.
Length
19.9 in.
Outlet Diameter
1.5 in.
Product Weight
66 lbs.
Width
9.26 in.

Dimensions and Measurements

Flow Rate (GPM)
71
Inlet Diameter
2 in.
Length
19.9 in.
Outlet Diameter
1.5 in.
Product Weight
66 lbs.
Width
9.26 in.

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Brass
Submersible
No

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Brass
Submersible
No

Electrical and Operational Information

Amperage
9.3
Horsepower
1.5
Maximum Operating Pressure (PSI)
41
Self Priming
Yes
Suction Head
25 ft.
Voltage
120, 240

Electrical and Operational Information

Amperage
9.3
Horsepower
1.5
Maximum Operating Pressure (PSI)
41
Self Priming
Yes
Suction Head
25 ft.
Voltage
120, 240

Warranty and Product Information

Manufacturer Warranty
2 Year

Warranty and Product Information

Manufacturer Warranty
2 Year
