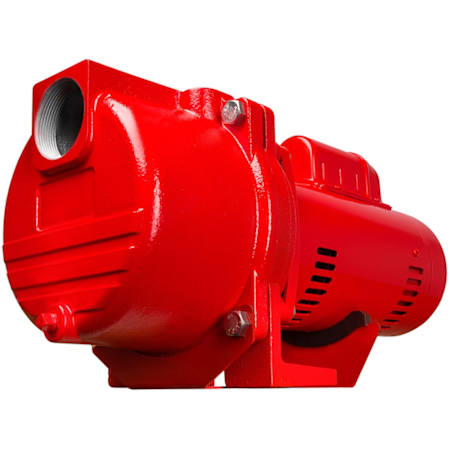

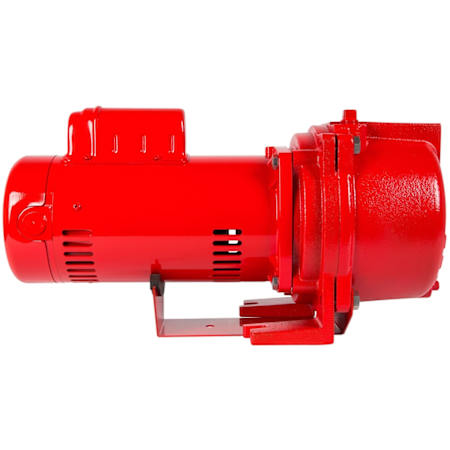

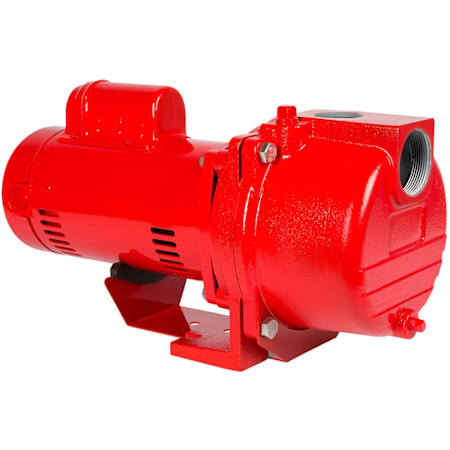

Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump
Model: 97101501|Item: bci5172183
Details
Product Information:
- 1-1/2 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of water
- Heavy-Duty Cast Iron Construction with Thermoplastic Impeller: Designed for years of service and reliability
- 115/230 Volt Heavy-Duty Motor: Voltage selector for simple connection to existing power source
- Self-Priming Design: After initial fill, no additional priming required
- Engineered Pump Housing and Hydraulics: For high performance, efficiency and quiet operation
- Additional Specs
- 2" NPT Intake / 1-1/2" NPT Discharge
- 18.6 A @ 115 V
- 9.3 A @ 230 V
- 2-Year Warranty
Dimensions and Measurements
Flow Rate (GPM) | 71 |
Inlet Diameter | 2 in. |
Length | 19.9 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 64 lbs. |
Width | 9.26 in. |
Dimensions and Measurements
Flow Rate (GPM) | 71 |
Inlet Diameter | 2 in. |
Length | 19.9 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 64 lbs. |
Width | 9.26 in. |
Characteristics and Features
Housing Material | Cast Iron |
Impeller Material | Plastic |
Submersible | No |
Characteristics and Features
Housing Material | Cast Iron |
Impeller Material | Plastic |
Submersible | No |
Electrical and Operational Information
Amperage | 9.3 |
Horsepower | 1.5 |
Maximum Operating Pressure (PSI) | 44 |
Self Priming | Yes |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 9.3 |
Horsepower | 1.5 |
Maximum Operating Pressure (PSI) | 44 |
Self Priming | Yes |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Manufacturer Warranty | 2 Year |
