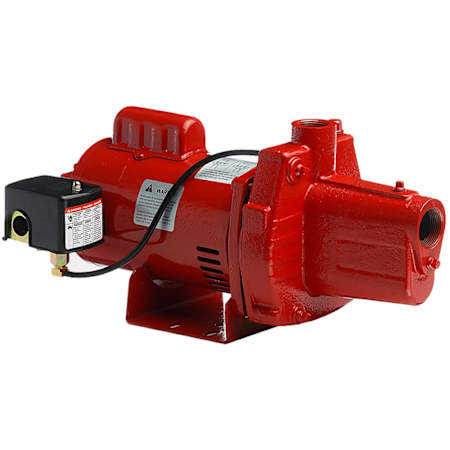

Red Lion 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump with Pressure Switch
Model: 602206|Item: bci5172239
Details
Product Information:
- 1/2 HP Shallow Well Jet Pump: Ideal for use in pumping at depths of 25' or less
- Heavy-Duty Cast Iron Construction: Built for years of reliable service
- Includes Factory Pre-Wired 30/50 Pressure Switch: Produces up to 50 PSI with automatic shut-off
- 115/230 Volt Heavy-Duty Century Motor: Voltage selector for simple connection to existing power source
- Glass-Filled Thermoplastic Impeller and Diffuser: For high performance and efficient water flow
- Additional Specs
- 1-1/4" FNPT - Intake
- 1" FNPT - Discharge
- 3-Year Limited Warranty
Dimensions and Measurements
Flow Rate (GPM) | 12.6 |
Height | 10.25 in. |
Inlet Diameter | 1.25 in. |
Length | 20.5 in. |
Outlet Diameter | 1 in. |
Product Weight | 36 lbs. |
Width | 10.5 in. |
Dimensions and Measurements
Flow Rate (GPM) | 12.6 |
Height | 10.25 in. |
Inlet Diameter | 1.25 in. |
Length | 20.5 in. |
Outlet Diameter | 1 in. |
Product Weight | 36 lbs. |
Width | 10.5 in. |
Characteristics and Features
Housing Material | Cast Iron |
Impeller Material | Plastic |
Submersible | No |
Characteristics and Features
Housing Material | Cast Iron |
Impeller Material | Plastic |
Submersible | No |
Electrical and Operational Information
Amperage | 5.9 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 65 |
Self Priming | No |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 5.9 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 65 |
Self Priming | No |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
