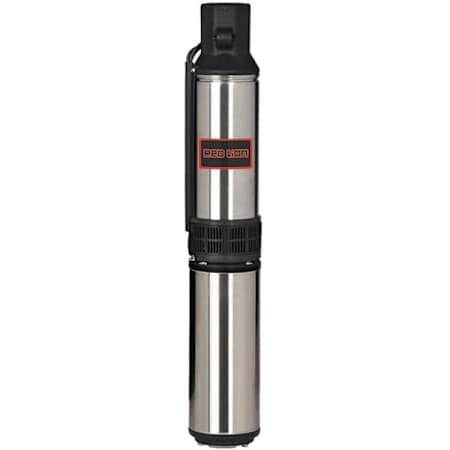

Red Lion 12 GPM 1 HP Deep Well Submersible Pump (3-Wire 230V) with Control Box
Model: 14942407|Item: bci5172181
$806.79
Special Order
Flow Rate (GPM)
12 GPM
$806.79
22 GPM
$669.47
12 GPM
Horsepower
1/2-HP
$540.00
3/4-HP
$698.14
1-HP
$806.79
1-1/2-HP
$947.10
1-HP
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-Details
Product Information:
- 4" Submersible Deep Well Pump
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard 3-Wire 230V Motor: Proven superior quality and performance ensuring quiet operation
- Hex Rubber Bearing with Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Check Valve: Prevents backflow and ensures system pressure
- Built-In Suction Screen: Helps to prevent debris from clogging impellers
- 1-1/4" NPT Thermoplastic Discharge Head: Provides full-flow performance without the risk of corrosion
- Includes Industry Standard Red Lion Control Box: Eliminates confusion for control box selection
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Outlet Diameter | 1.25 in. |
Product Weight | 32 lbs. |
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Outlet Diameter | 1.25 in. |
Product Weight | 32 lbs. |
Characteristics and Features
Configuration | Deep Well |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Characteristics and Features
Configuration | Deep Well |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Electrical and Operational Information
Feed Type | Continuous |
Horsepower | 1 |
Maximum Operating Pressure (PSI) | 80 |
Voltage | 240 |
Electrical and Operational Information
Feed Type | Continuous |
Horsepower | 1 |
Maximum Operating Pressure (PSI) | 80 |
Voltage | 240 |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
