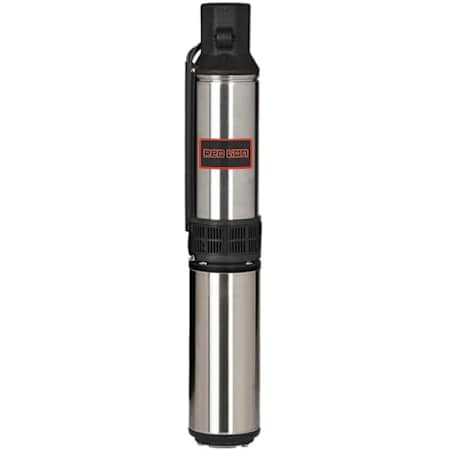

Red Lion 12 GPM 3/4 HP Deep Well Submersible Pump (3-Wire 230V) with Control Box
Model: 14942406|Item: bci5172180
Details
Product Information:
- 4" Submersible Deep Well Pump
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard 3-Wire 230V Motor: Proven superior quality and performance ensuring quiet operation
- Hex Rubber Bearing with Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Check Valve: Prevents backflow and ensures system pressure
- Built-In Suction Screen: Helps to prevent debris from clogging impellers
- 1-1/4" NPT Thermoplastic Discharge Head: Provides full-flow performance without the risk of corrosion
- Includes Industry Standard Red Lion Control Box: Eliminates confusion for control box selection
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Outlet Diameter | 1.25 in. |
Product Weight | 28 lbs. |
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Outlet Diameter | 1.25 in. |
Product Weight | 28 lbs. |
Characteristics and Features
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Characteristics and Features
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Electrical and Operational Information
Feed Type | Continuous |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 80 |
Voltage | 240 |
Electrical and Operational Information
Feed Type | Continuous |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 80 |
Voltage | 240 |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
